CFP Series of Worm Operators
CFP Series of Worm Operators
Range of product:
ANSI:(CFPA24-CFPA30)
DIN:(CFP24-CFP30)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
Product Details
●90 degree turning clutching drive device with micro active switch installed inside suitable for connecting with ball valve, butterfly valve,etc. used in the fire fighting field.
●Permitted output torque range is 270-700N.m
●Hand wheel can be equipped from both sides:left and right.
●The dimensions connected with the valve are designed according to IS05211/MSS SP-101.
●Loaded with grease inside the gear body, shell sealed for waterproof protection with a grade of IP65
Standards | Series Type | SizeRange |
ANSI | CFPA | CFPA24-CFPA30 |
DIN | CFP | CFP24-CFP30 |

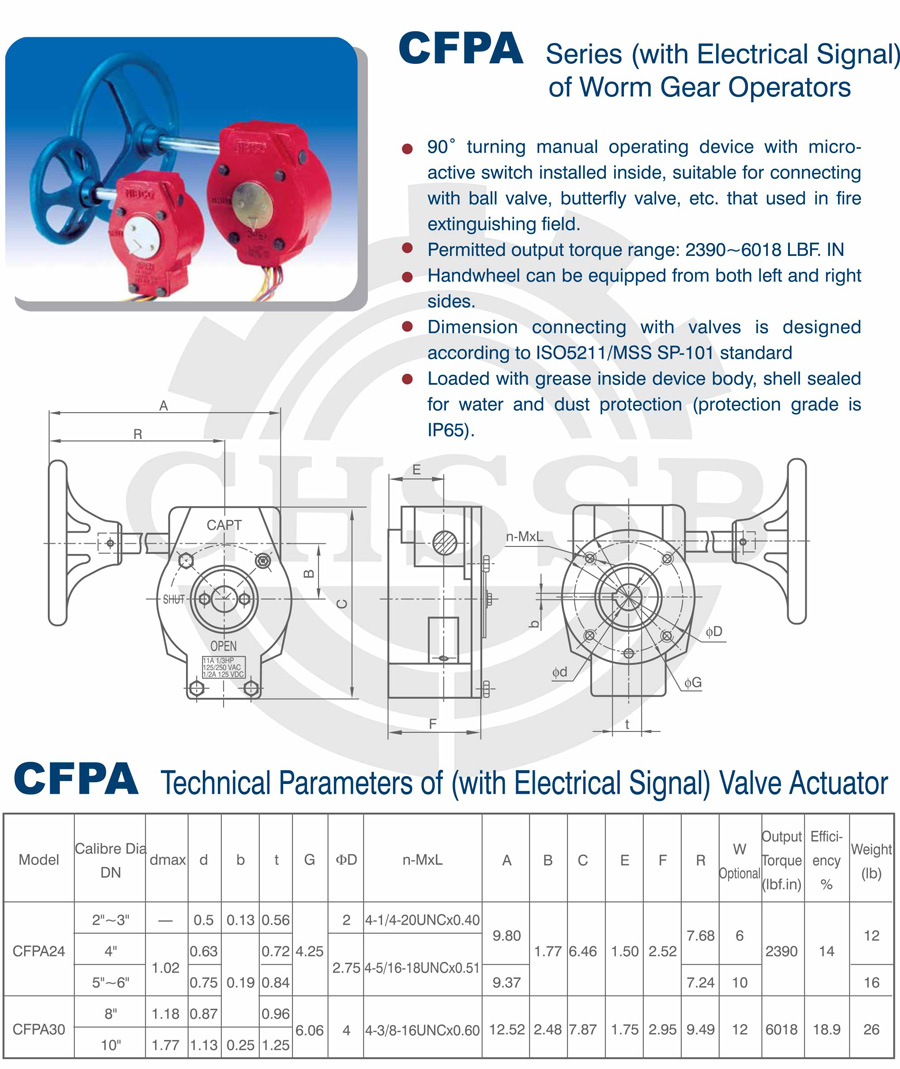

ANSI Standard:

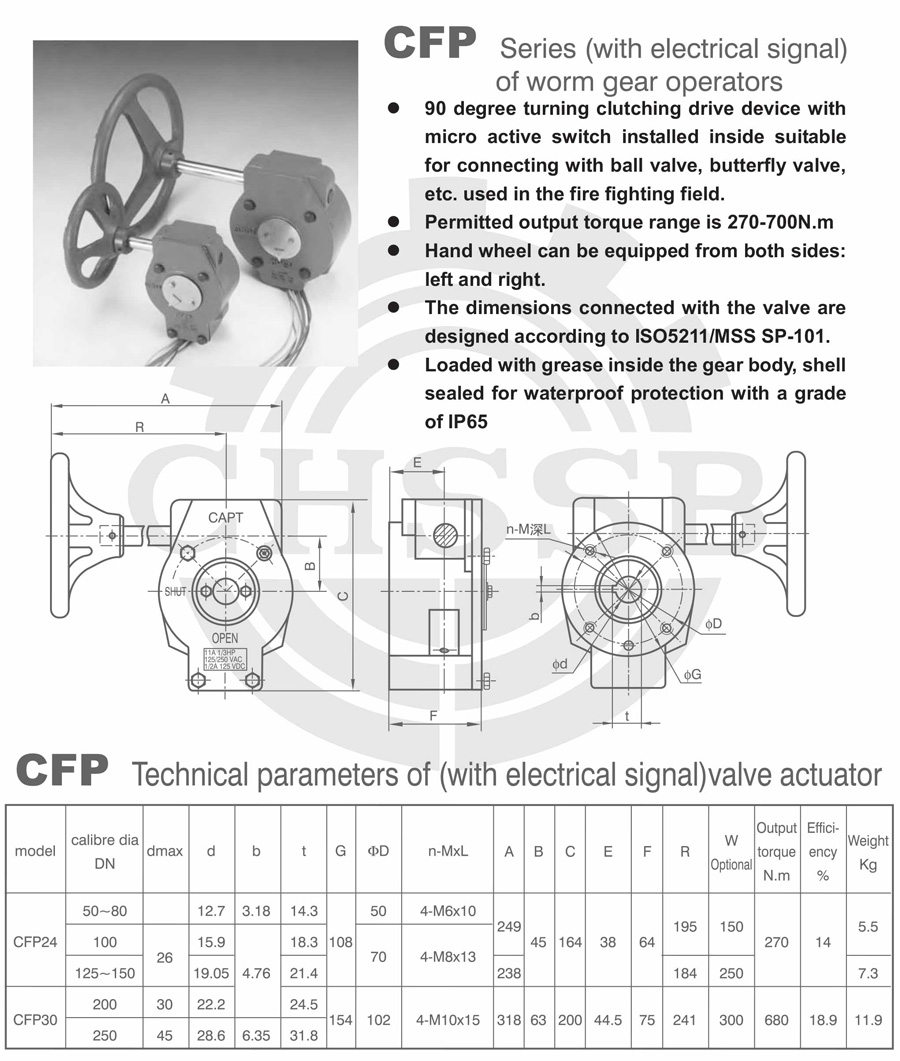

DIN Standard:
