Stock Bore Steel Miter Gears-B series
Stock Bore Steel Miter Gears-B series Type Pulleys
Range of product:
ANSI:(20°,1:1)
DIN:(1:1/1:1.5/1:2/1:2.5/1:3/1:3.5/1:4)
Inch size product (Apply to ANSI market)
Inch size product (Apply to DIN market)
Product Details
Series Type | SizeRange | |

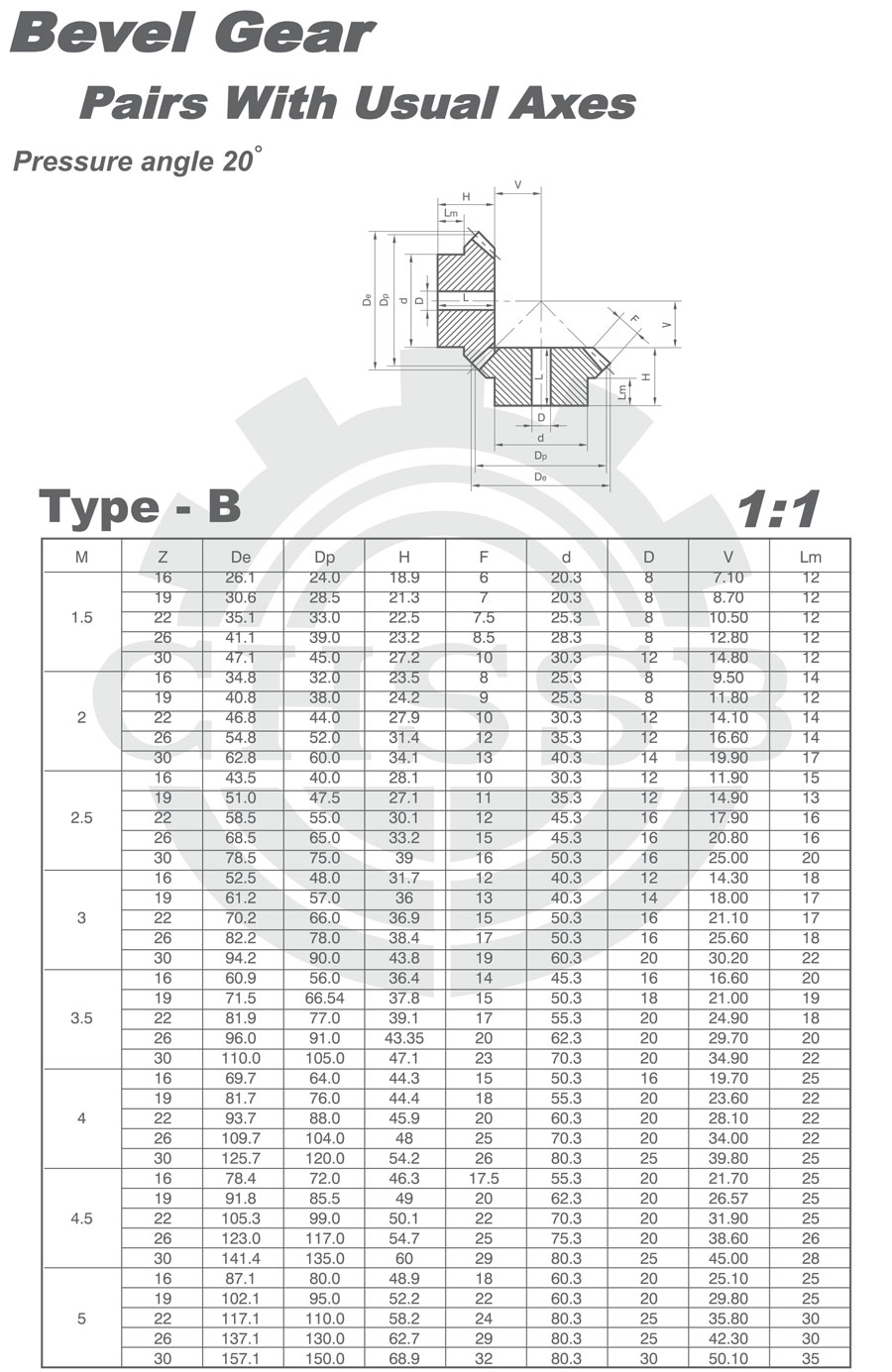

| DIN | Type B(1:1) | 20°,Mod.1.5-5 |

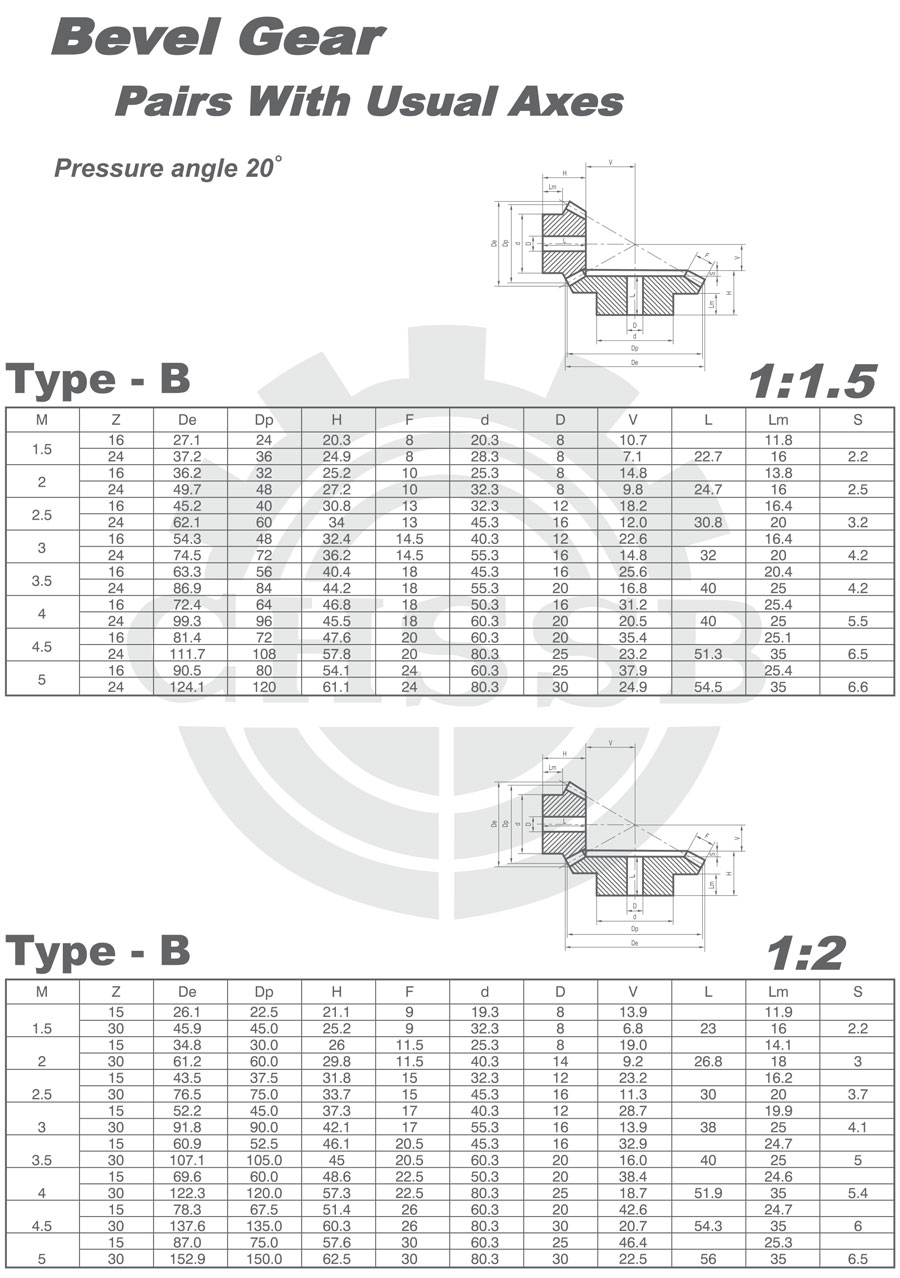

Type B(1:1.5) | 20°,Mod.1.5-5 | |
Type B(1:2) | 20°,Mod.1.5-5 | |

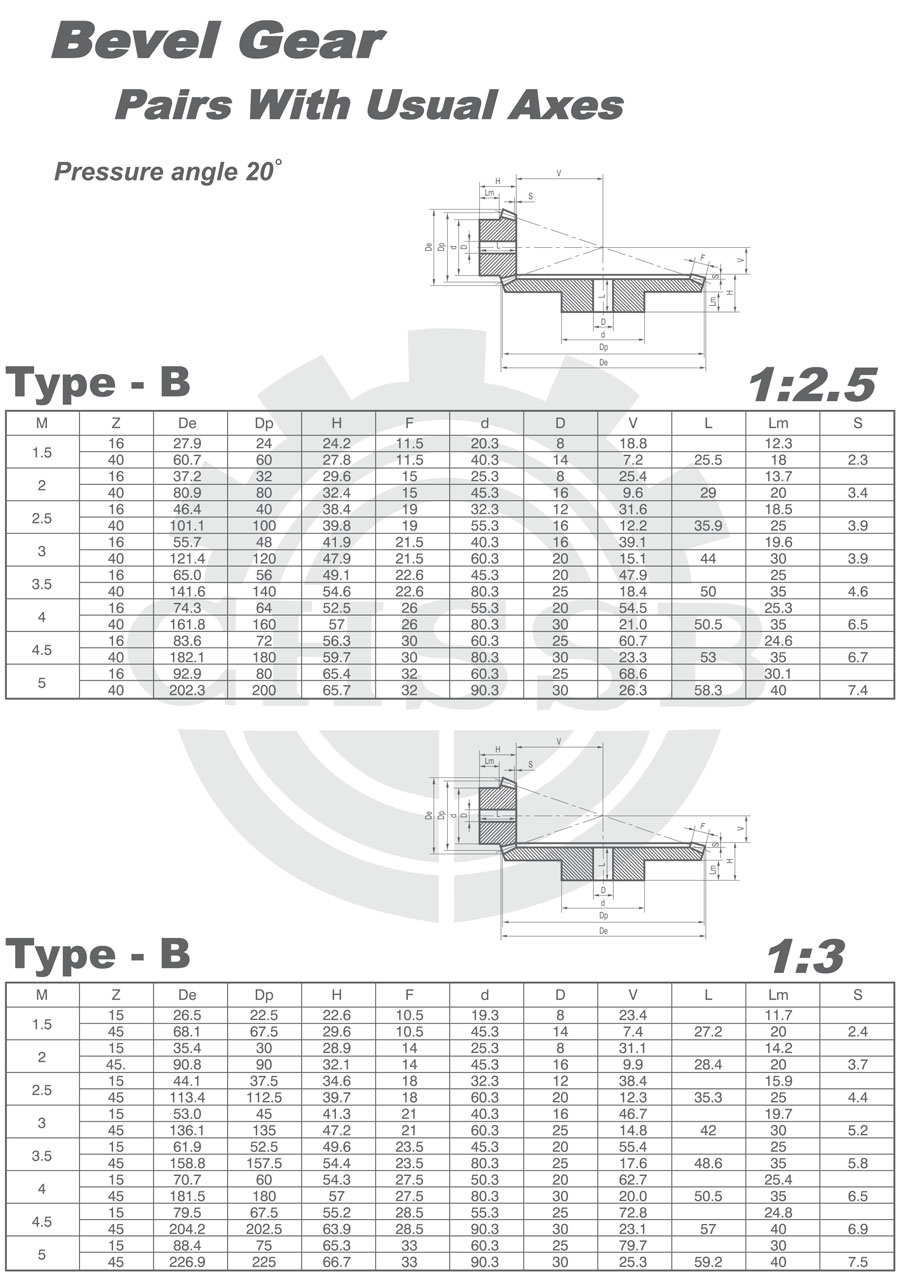

Type B(1:2.5) | 20°,Mod.1.5-5 | |
Type B(1:3) | 20°,Mod.1.5-5 | |

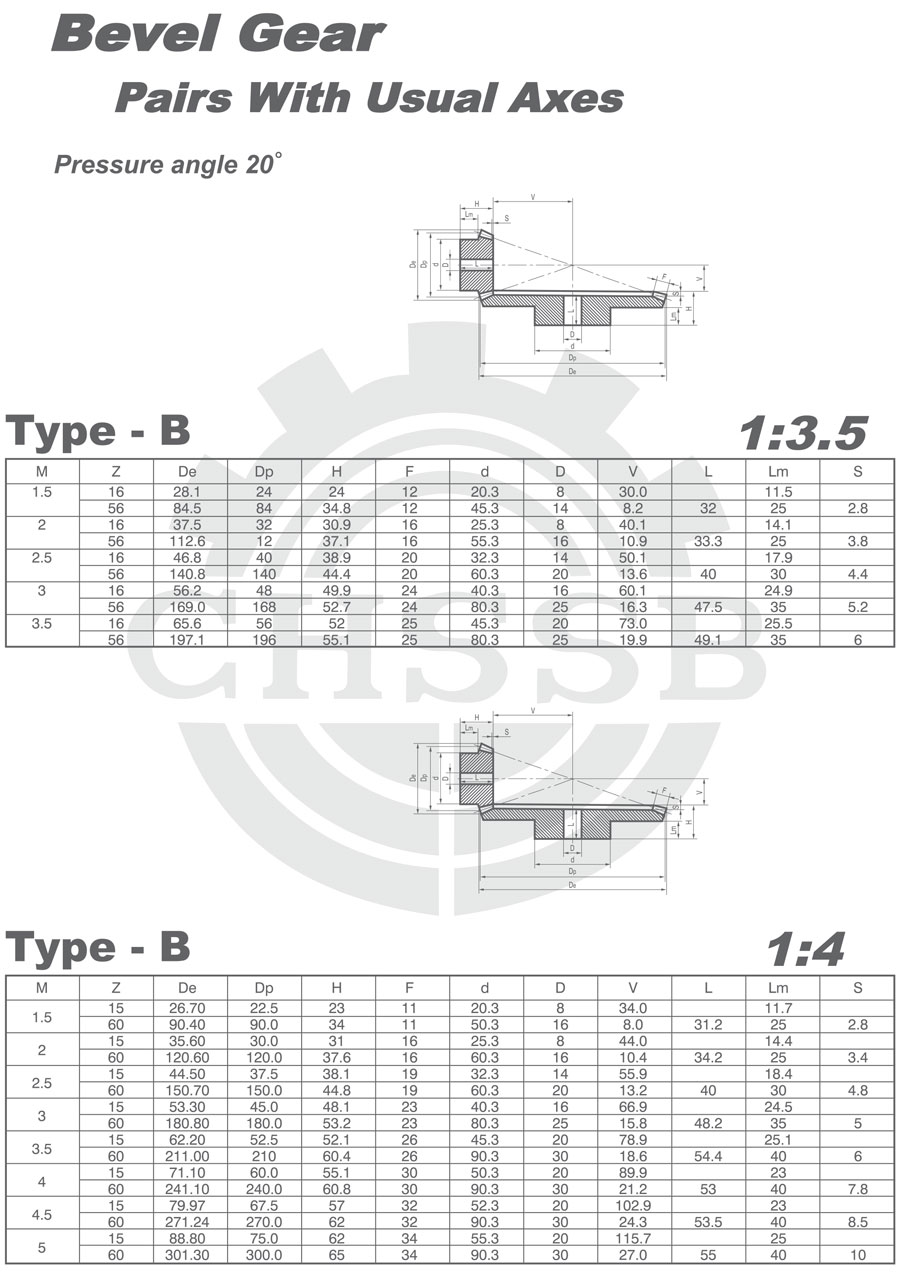

Type B(1:3.5) | 20°,Mod.1.5-5 | |
Type B(1:4) | 20°,Mod.1.5-5 |
Catalog explanation：
DIN Catalog:
