E(Z1) Type CAPT-LOCKS

Range of product:

ANSI:(CL10X13E to CL180X201E;F10x13 to F180x201;H10x13 to H180x201)

DIN:(CL10X13E to CL180X201E;F10x13 to F180x201;H10x13 to H180x201)

Inch size product (Apply to ANSI market)

Metric size product (Apply to DIN market)

Product Details

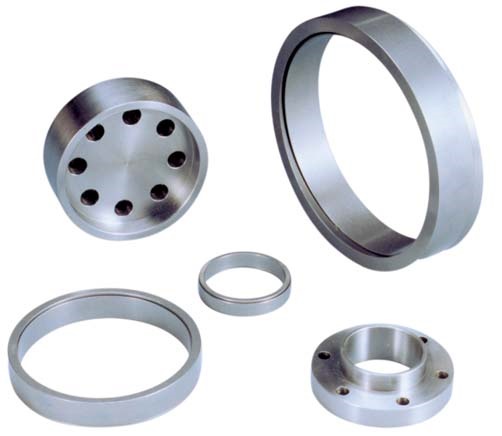

E NSPT-LOCKS include two inner and outer taper rings.The structure is simple and compact. It dose not need a large installation space, circular without split and is well balance dynamically.

E NSPT-LOCKS transfer high surface pressures onto the shaft by the pressing flange. E NSPT-LOCKS transfers high surface pressures onto the shaft by the pressing flange. The connection is formed by tightly compressing the shaft and the taper hole. It is well applicable to the light load and small space installation.

Type F and type H pressing flange may also be chosen according to the different shaft diameters and structures.

Standards	Series Type	SizeRange
ANSI	E(Inches)	6x9 to 400x440
ANSI/DIN	E(Z1)(Metric)	CL10x13E to CL180x201E
	F(Tightening Flange Type F)(Metric)	F10x13 to F180x201
	H(Tightening Flange Type H)(Metric)	H10x13 to H180x201

ANSI Catalog:ANSI E(Z1) Type CAPT-LOCKS.pdf

DIN Catalog：DIN E(Z1) Type CAPT-LOCKS.pdf
