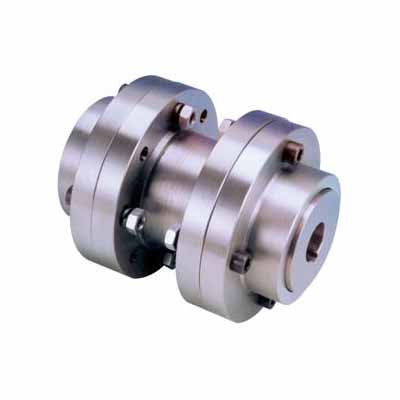

GSL Type Couplings
GSL Type Couplings
Range of product:
ANSI:(GSL100-GSL700)
DIN:(GSL78-GSL400)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
Product Details
On assembly, keyways nust be sealed off to prevent lubricant discharge.
1.5 Max angular misalignment per half coupling
keyway dimensions conform to DIN6885,JIS B 1310-1976, UNI 6604-1969,
GB 1095-1979 standards
Standards | Series Type | SizeRange |
ANSI | GSL | GSL100-GSL700 |
DIN | GSL | GSL78-GSL400 |

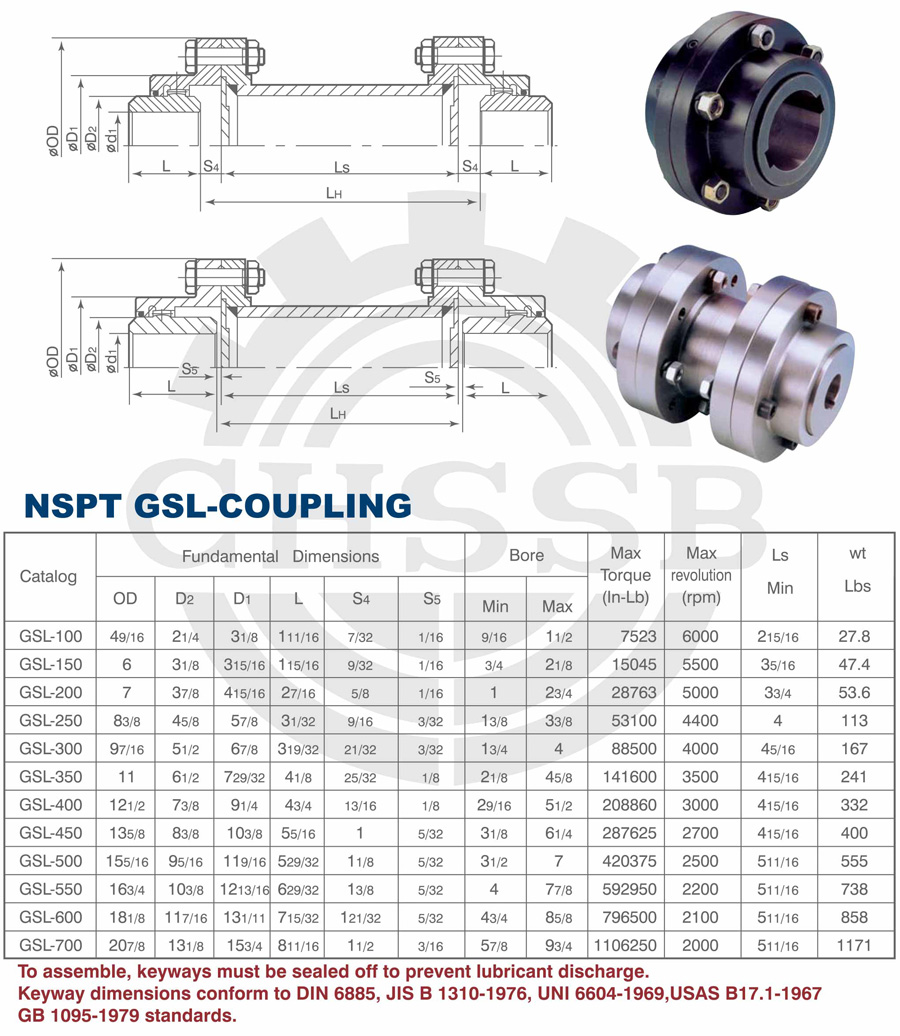

ANSI Standard:

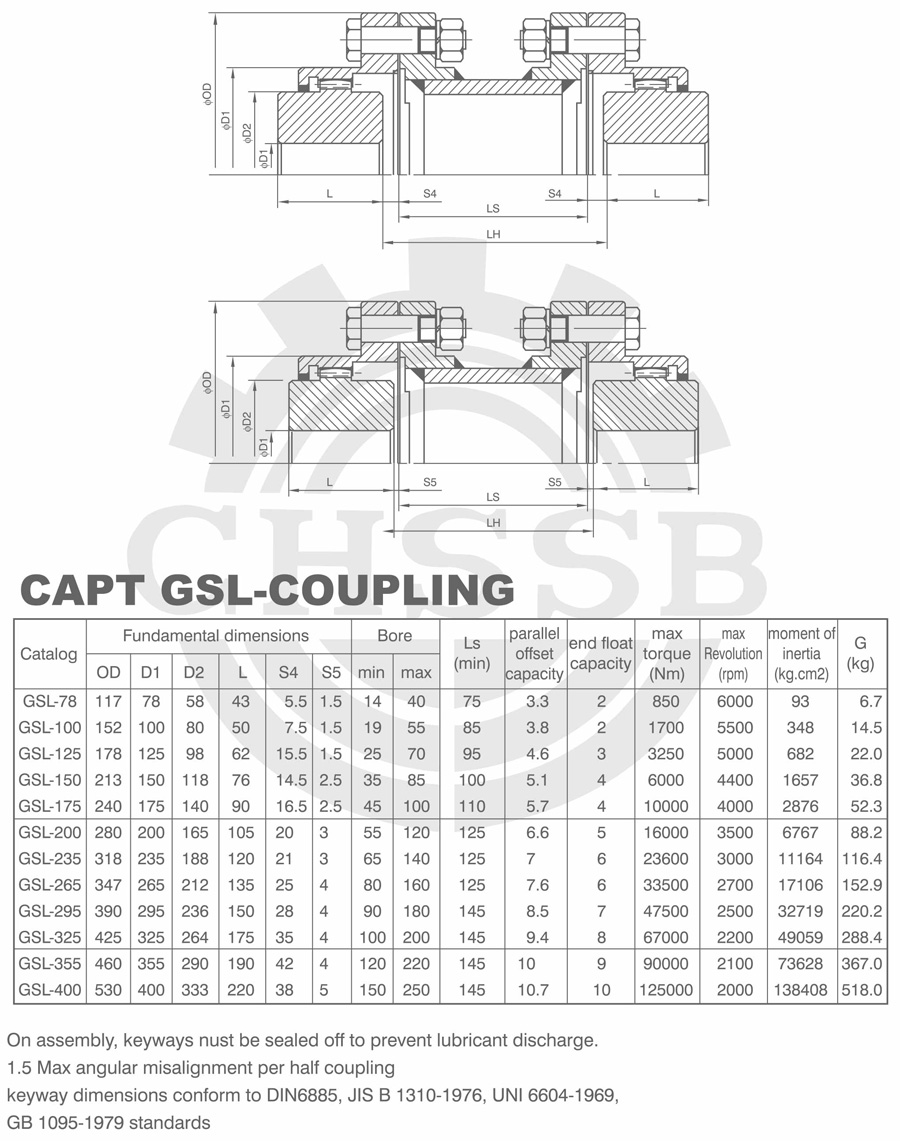

DIN Standard:
