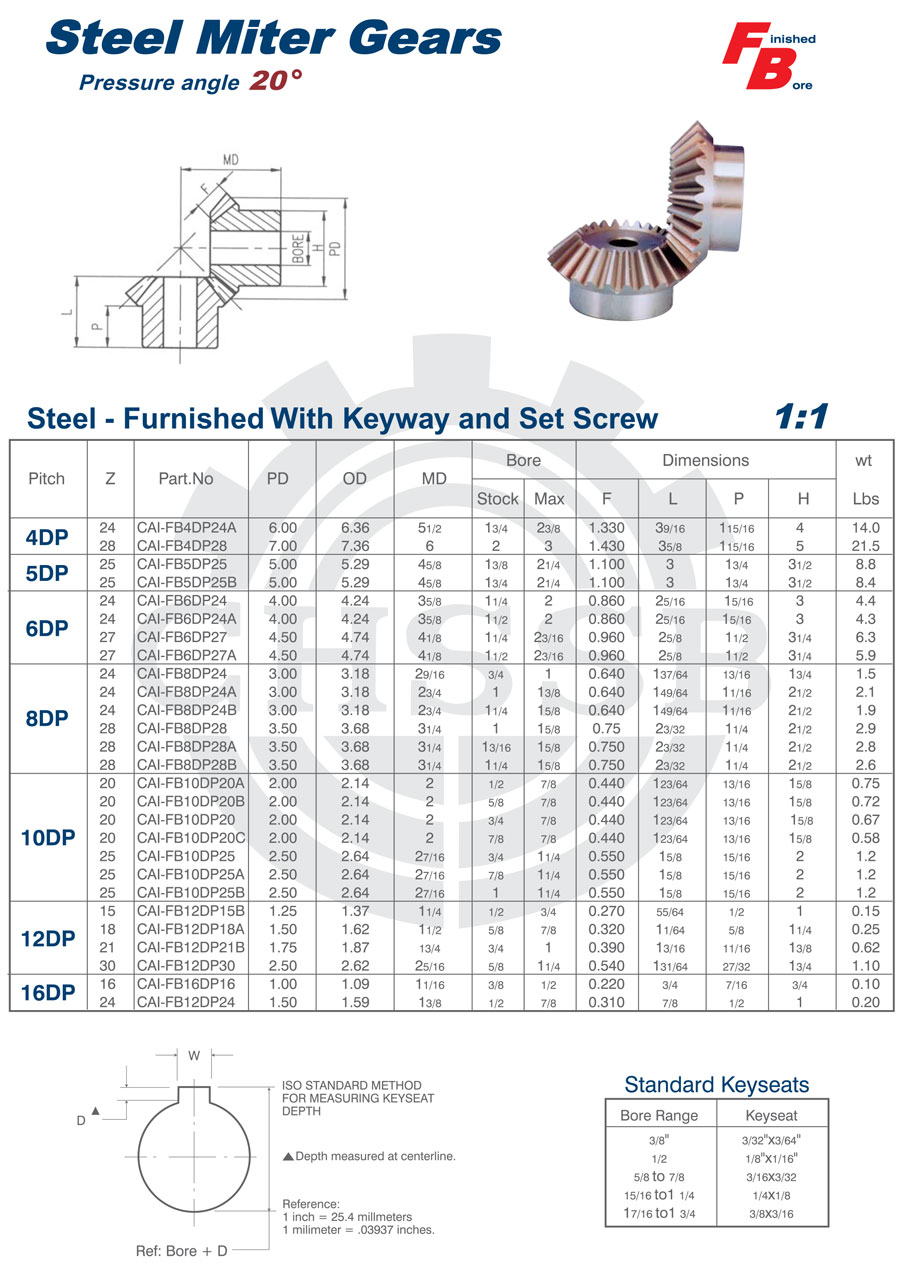

Finished Bore Steel Miter Gears
Range of product:
ANSI:(20° 1:1/1:1.5/1:2/1:3/1:4)
Inch size product (Apply to ANSI market)
Product Details
Standards | Series Type | SizeRange |
ANSI | 20°,1:1 | 4DP-24DP |
20°,1:1.5 | 10DP-16DP | |

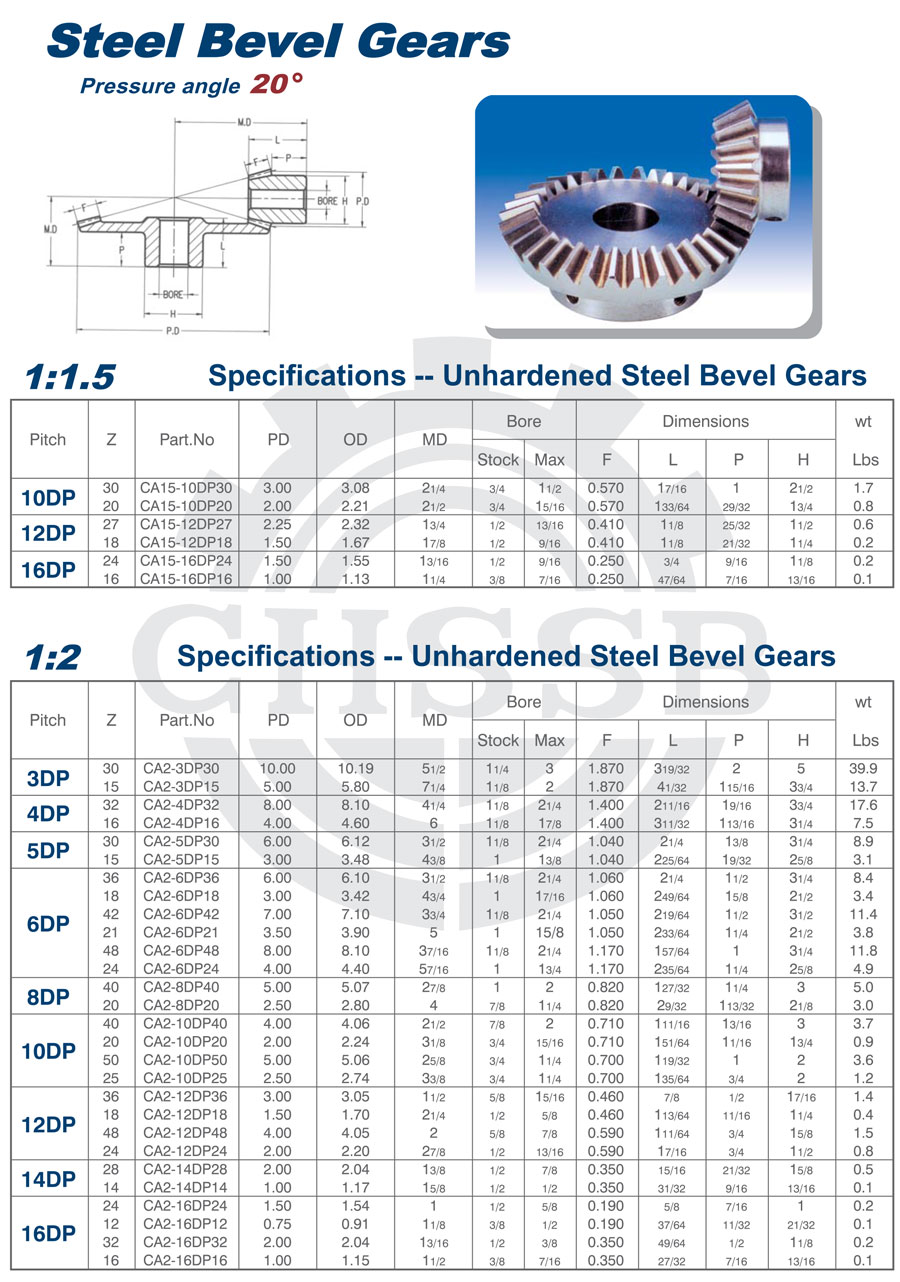

20°,1:2 | 2DP-16DP | |

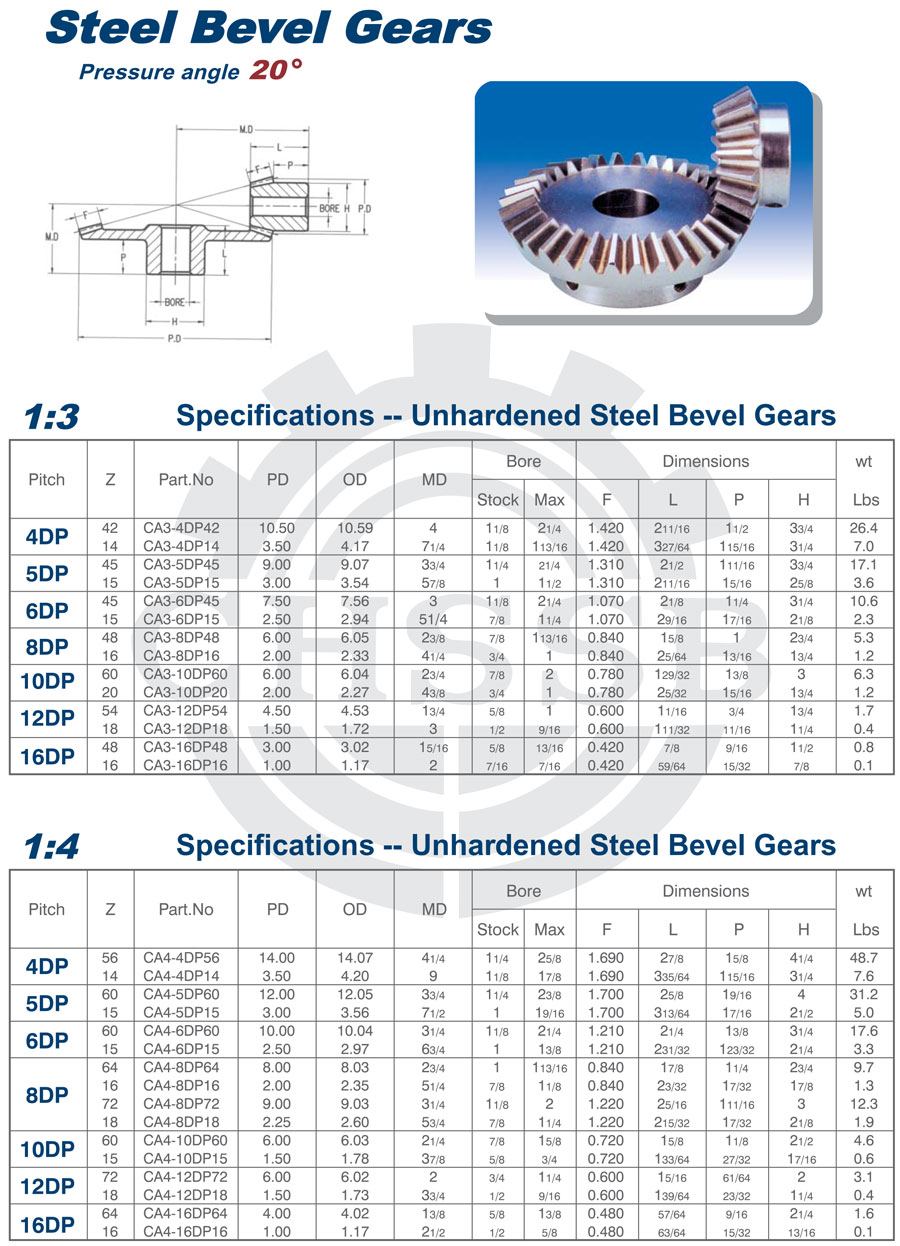

20°,1:3 | 4DP-16DP | |
20°,1:4 | 4DP-16DP |
ANSI Catalog：
