FB Steel Spur Gears
FB Steel Spur Gears Type Pulleys
Range of product:
ANSI:(14 1/2°,8DP / 14 1/2°,10DP / 14 1/2°,12DP / 14 1/2°,16DP)
Inch size product (Apply to ANSI market)
Product Details
| Standards | Series Type | SizeRange |
ANSI | 14 1/2°,8DP | FB8S12 - FB8S22 |
14 1/2°,10DP | FB10S12 - FB10S24 | |
14 1/2°,12DP | FB12S11 - FB12S24 | |
14 1/2°,16DP | FB16S12 - FB16S32 |

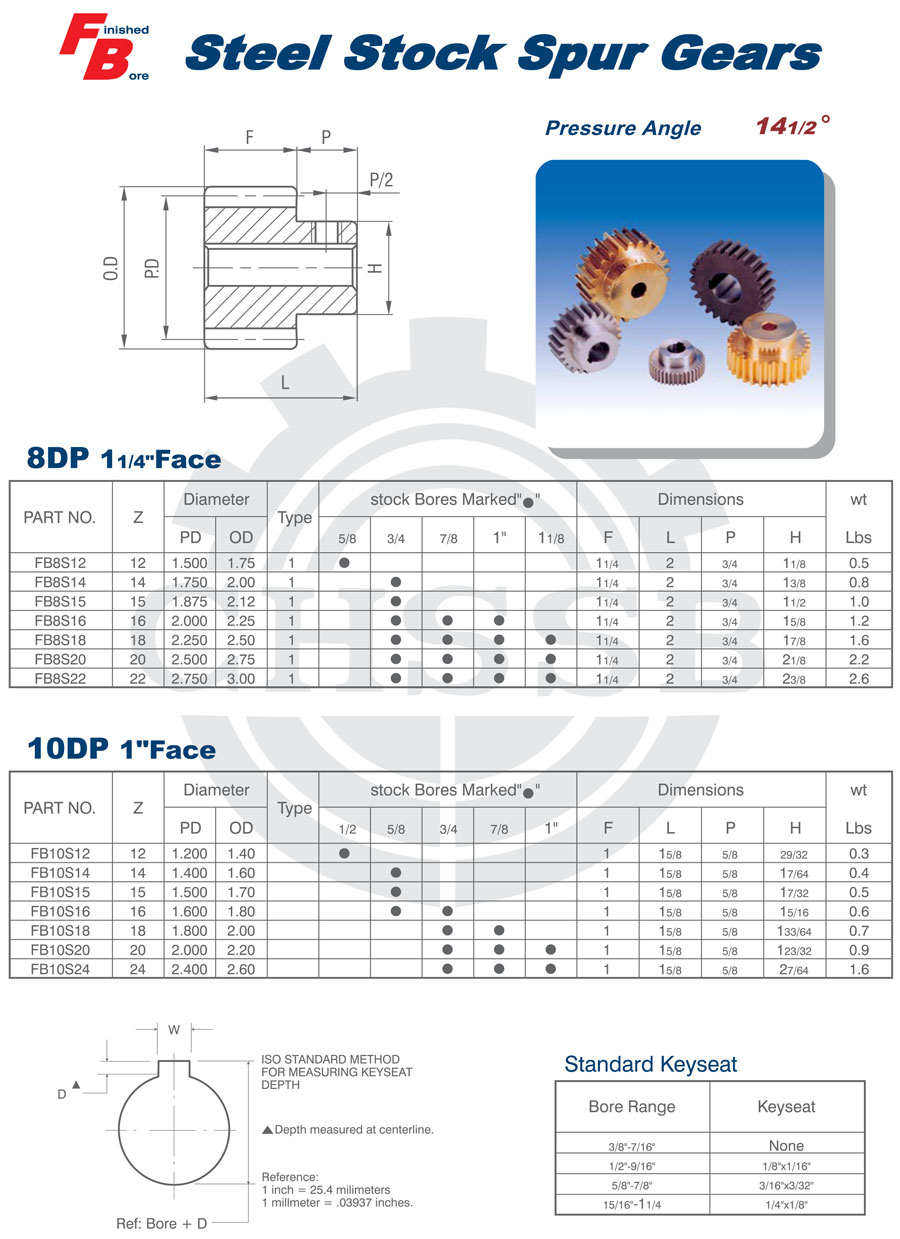

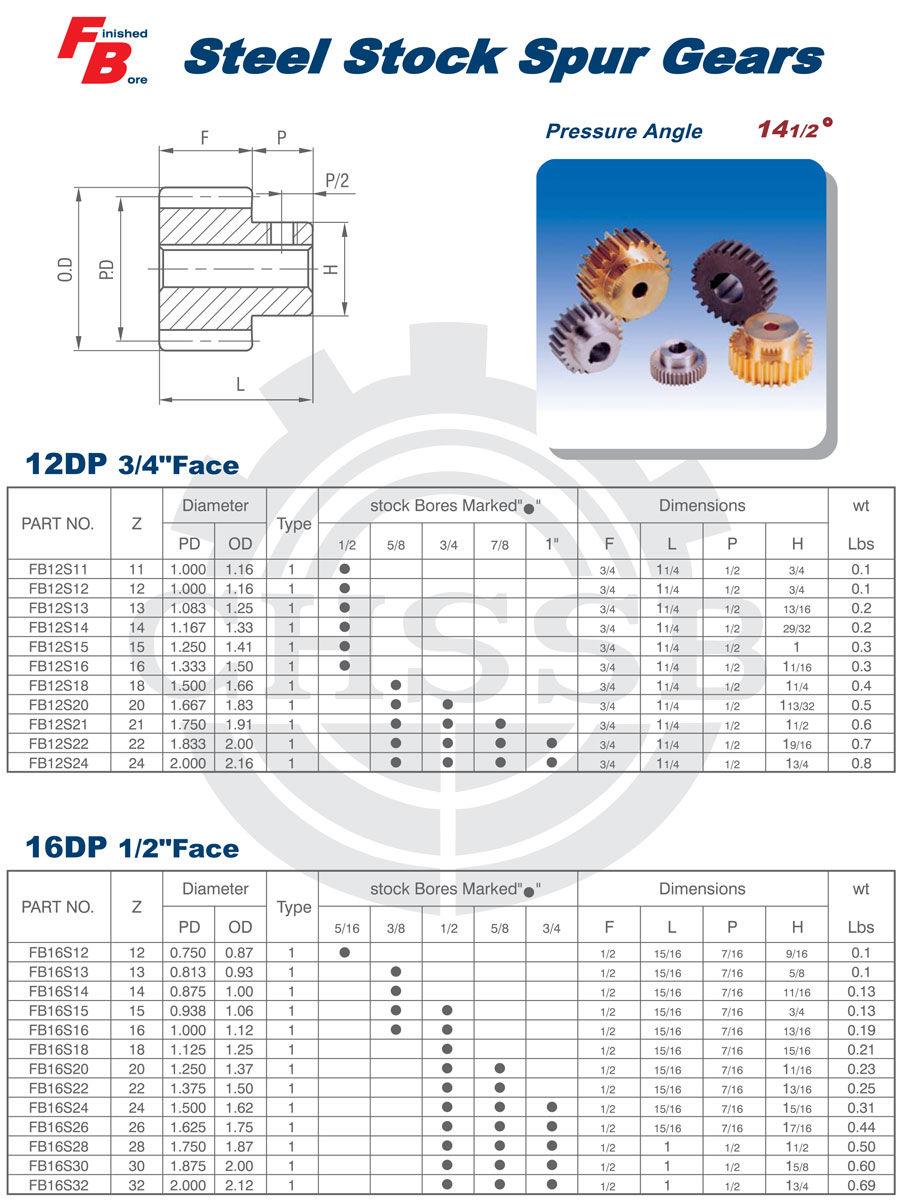

Catalog explanation：
ANSI Catalog:
