Stock Bore Steel Miter Gears-A series
Stock Bore Steel Miter Gears-A series Type Pulleys
Range of product:
ANSI:(20°,1:1)
DIN:(1:1/1:2/1:3/1:4)
Inch size product (Apply to ANSI market)
Inch size product (Apply to DIN market)
Product Details
Series Type | SizeRange | |

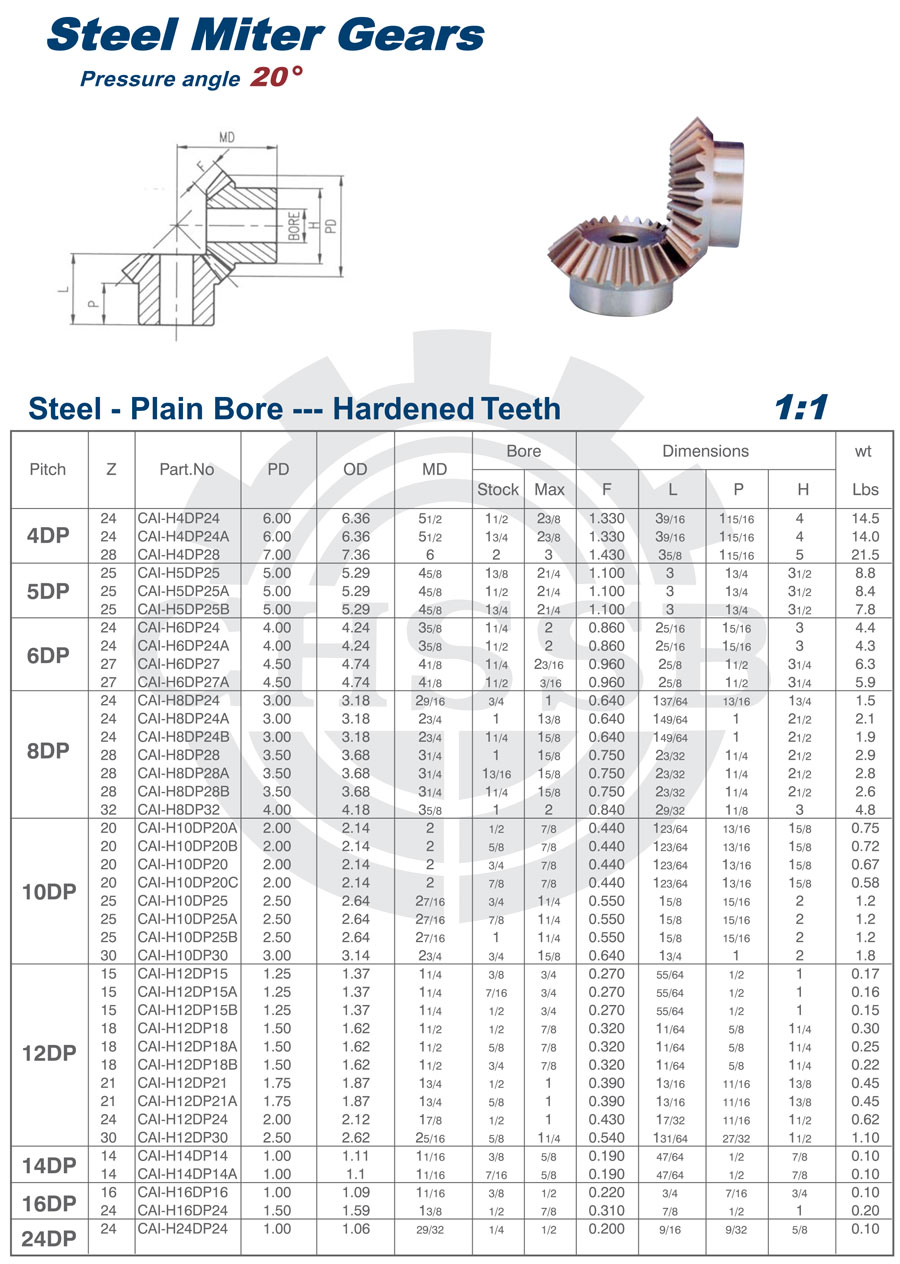

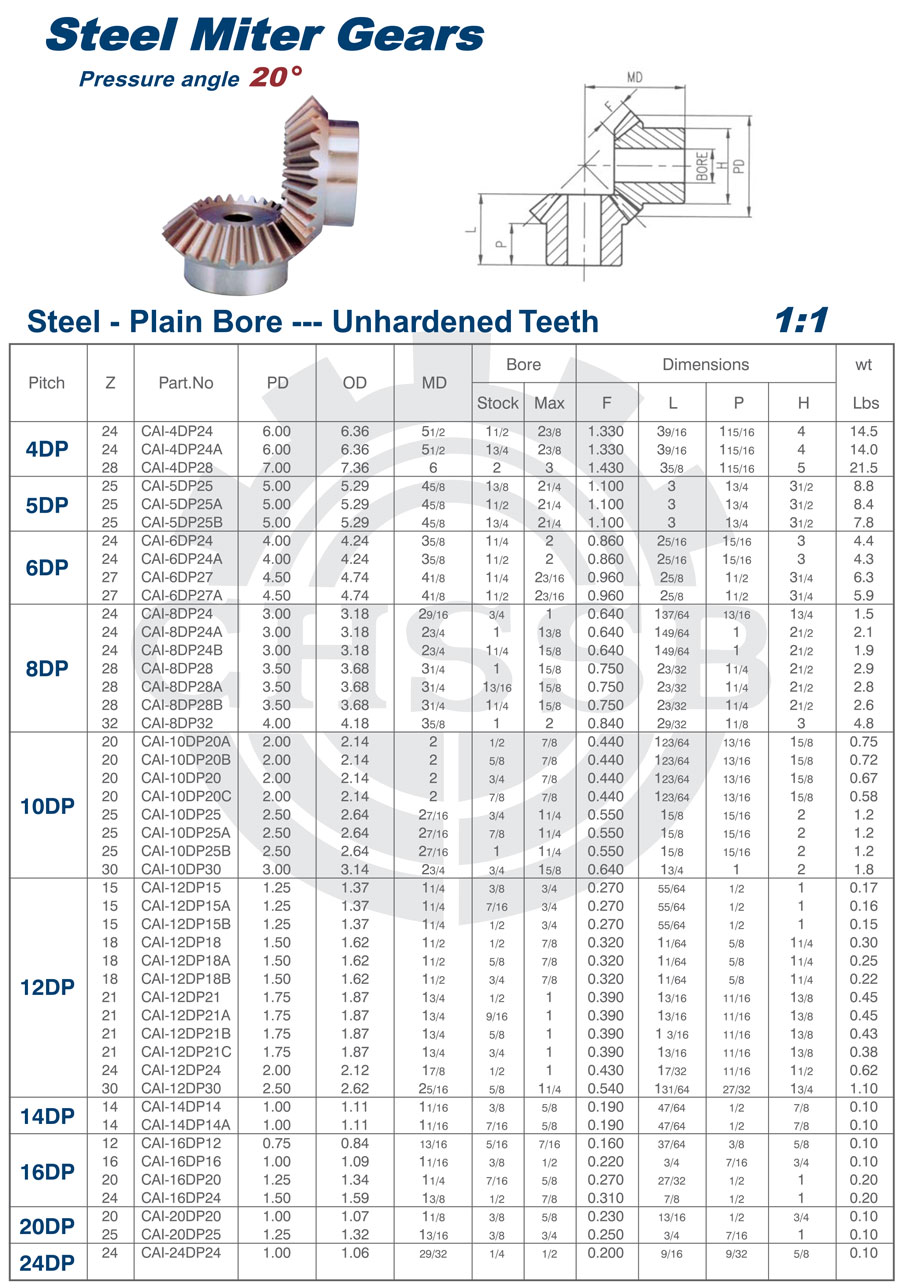

ANSI | 20°,1:1 | 4DP-24DP |

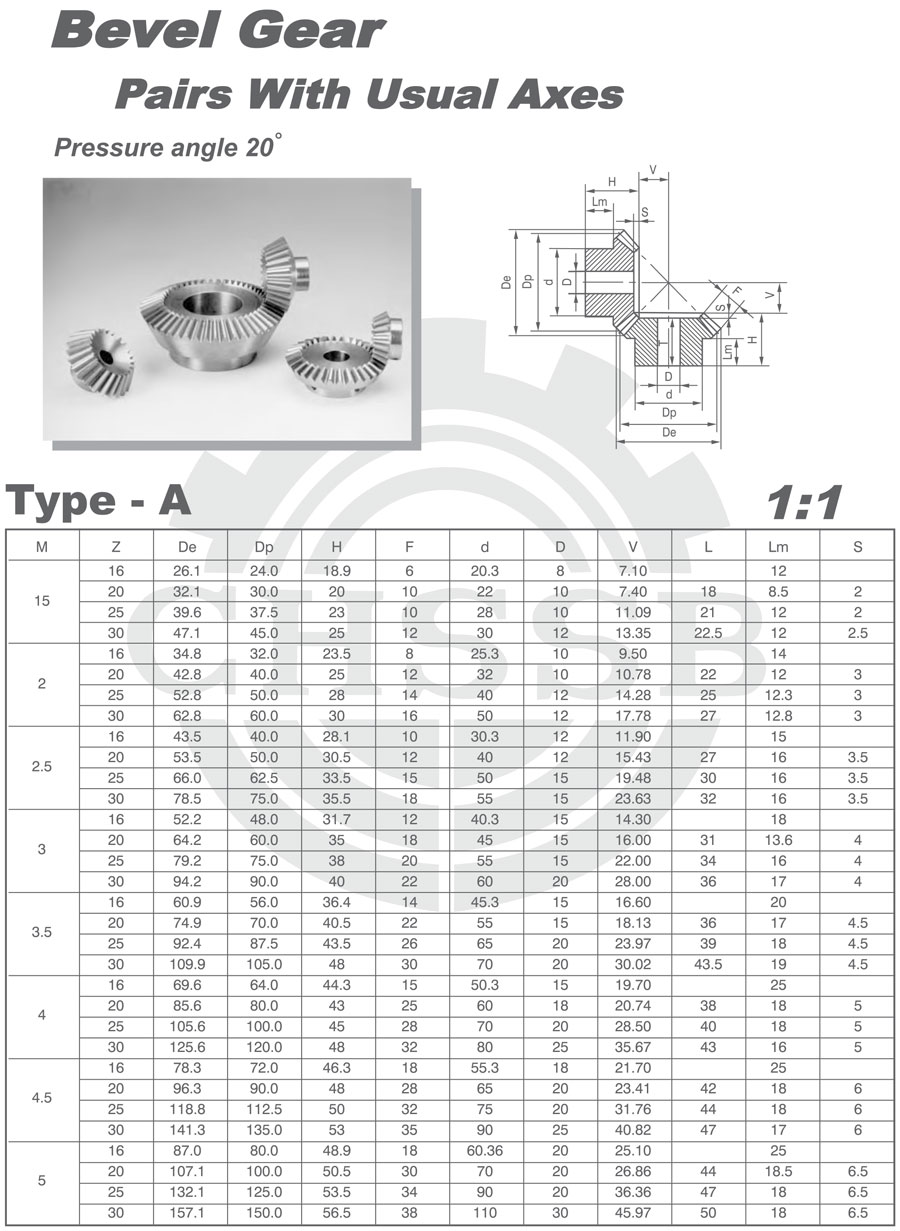

DIN | Type A(1:1) | 20°,Mod.1.5-5 |

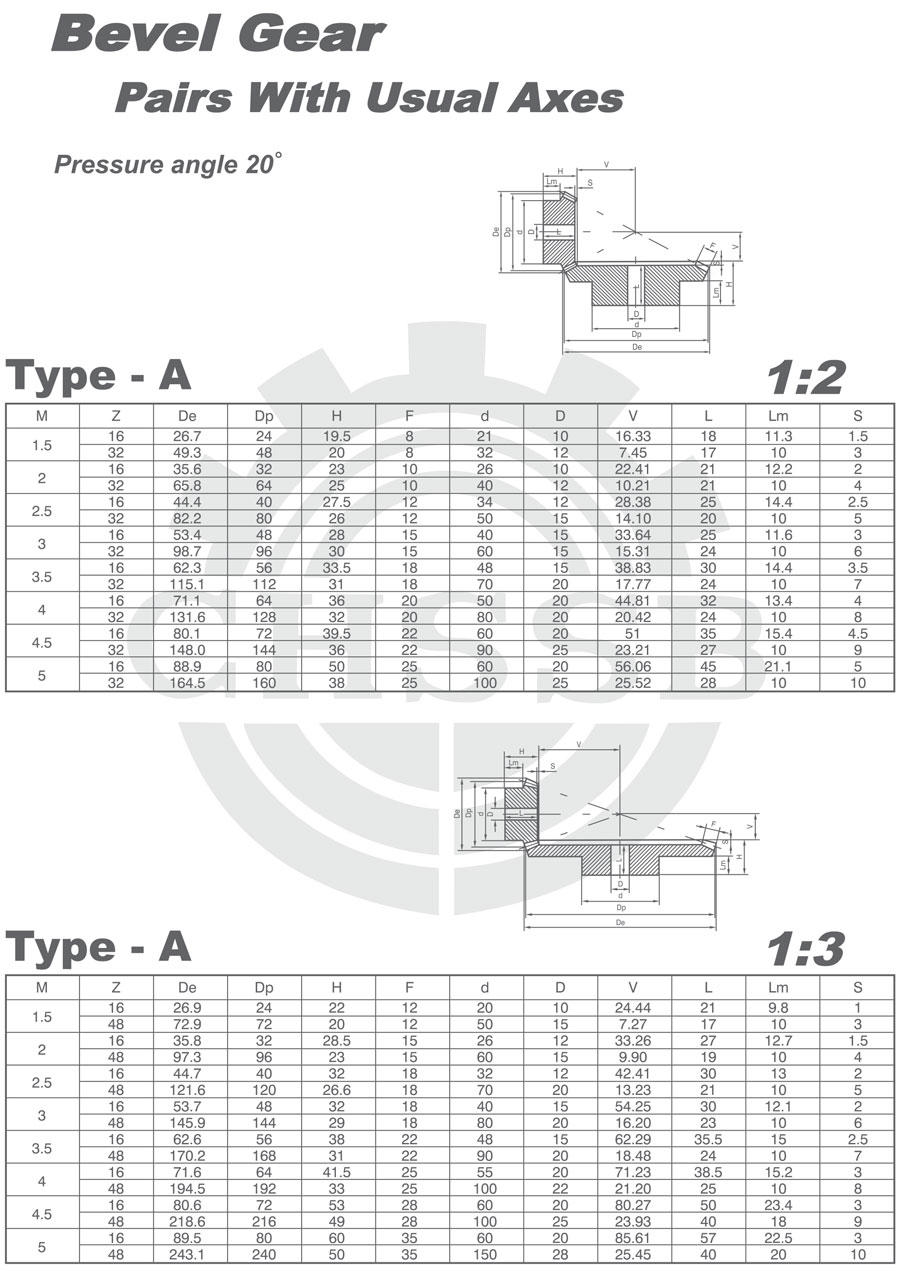

Type A(1:2) | 20°,Mod.1.5-5 | |
Type A(1:3) | 20°,Mod.1.5-5 | |

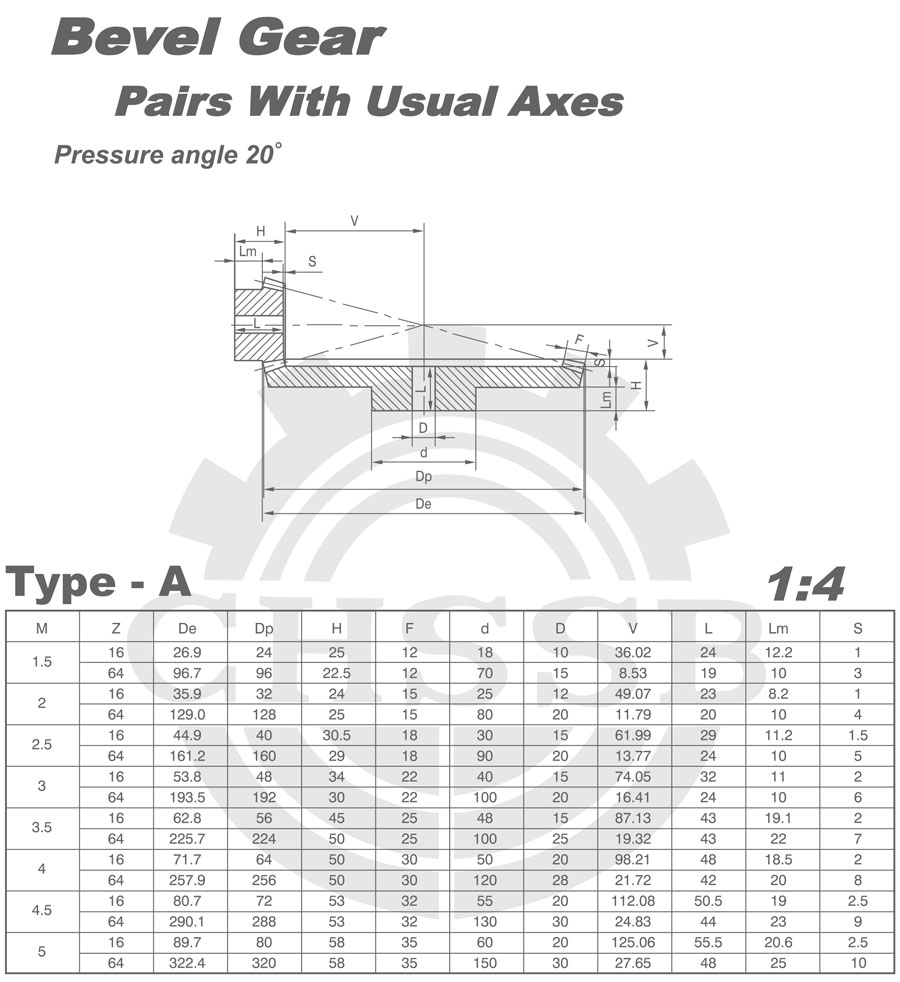

Type A(1:4) | 20°,Mod.1.5-5 |
Catalog explanation：
ANSI Catalog:
DIN Catalog:
Prev:Machined Gear Racks
Next: STL Spur Gears
