CBG Series of Bevel Gear Operators
CBG Series of Bevel Gear Operators
Range of product:
ANSI:(CBGA20-CBGA50)
DIN:(CBG20-CBG50)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
Product Details
●Multi turning type manual drive device suitable for gate valves, stop valves, etc.
●Allowable output torque range is 1017-678N.m
●Tooth scarf join type connection with valve.Flange joining is designed according to standard ISO 5211/MSS SP-101.
●Material for gear body and cover are made of cast iron and parts are made of high precision ductile iron.
Standards | Series Type | SizeRange |
ANSI | CBGA | CBGA20-CBGA50 |
DIN | CBG | CBG20-CBG50 |

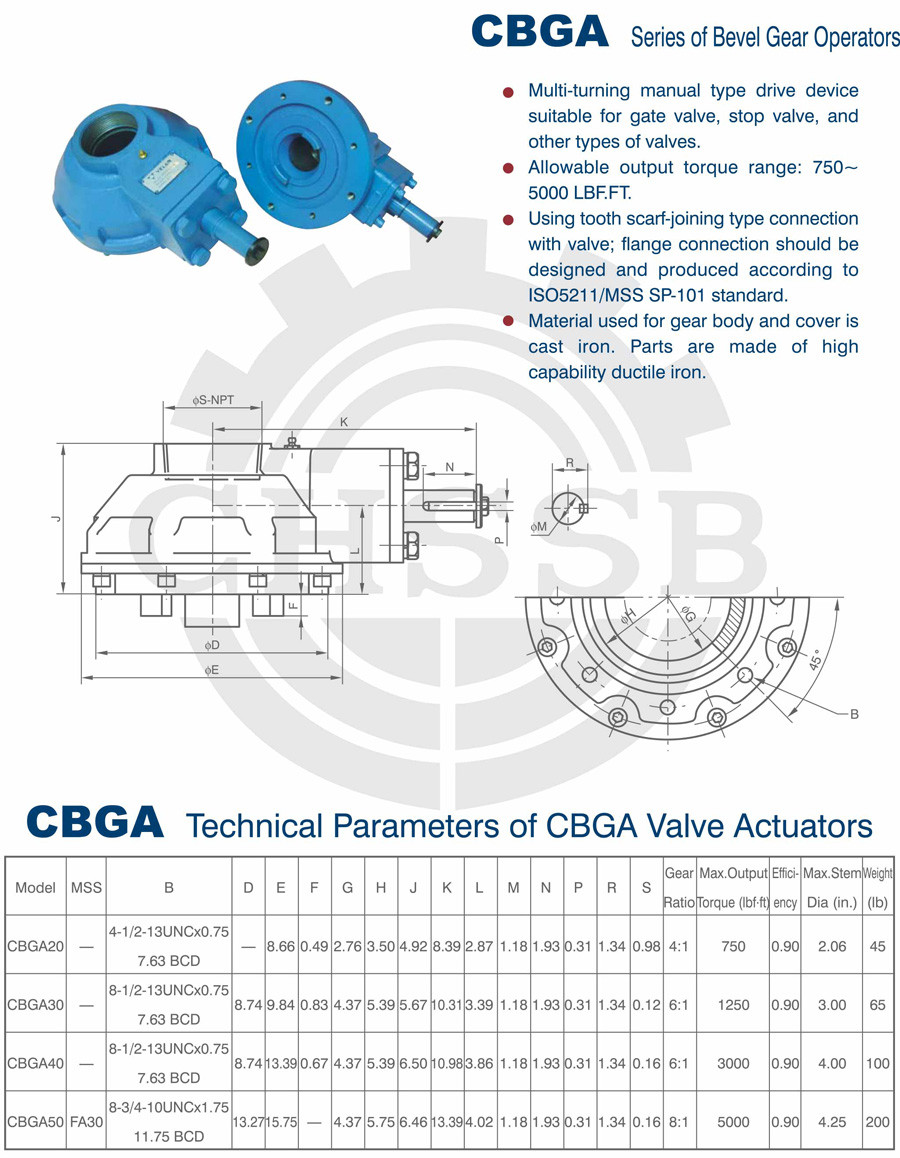

ANSI Standard:

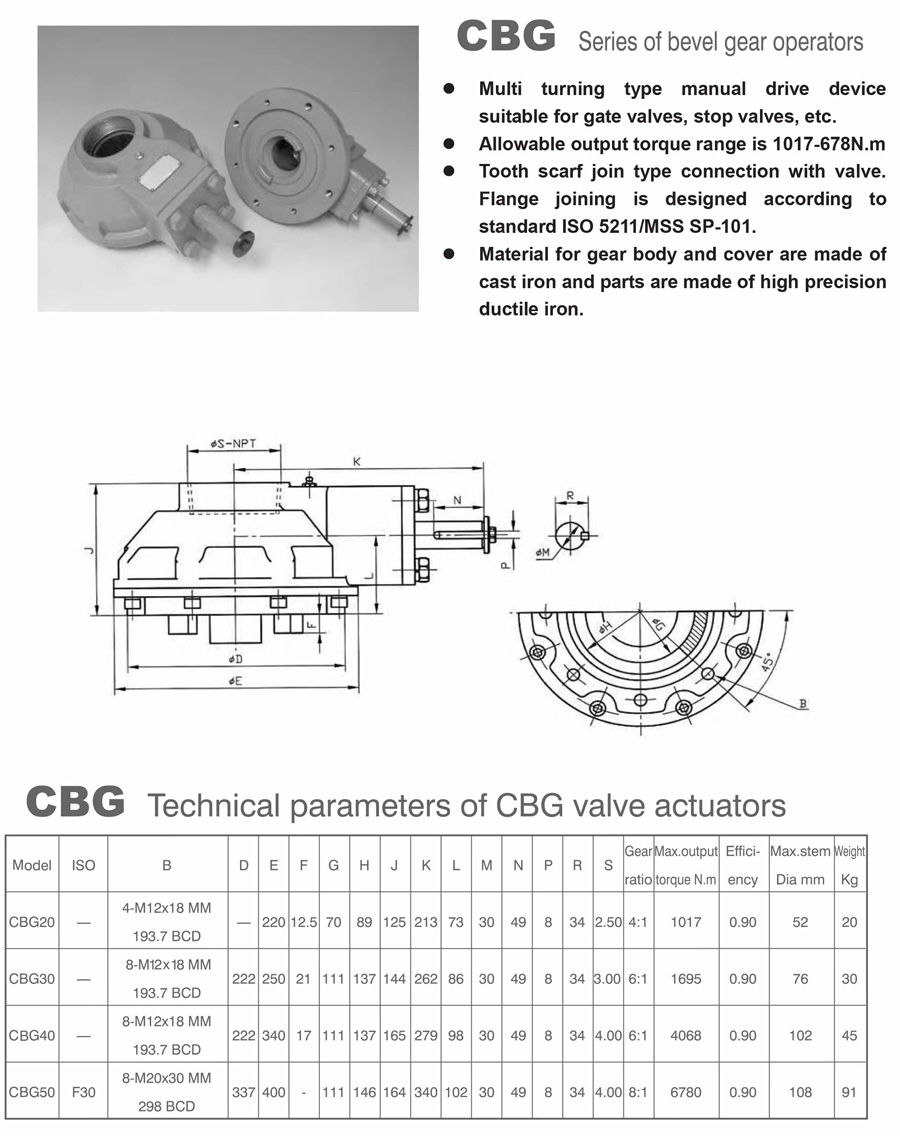

DIN Standard:
