EL & ELS Type Couplings
EL & ELS Type Couplings
Range of product:
ANSI:(EL35-EL315;ELS44-ELS250)
DIN:(EL90-EL800;ELS112-630)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
Product Details
Material can be GG25 and S45C and S45C.After surface is machined and phosphated,they are with high precision and are durable in use.
Special Notice: EL -coupling or ELS-coupling should be dynamically balanced according to degree Q6.3 when rotational speed reaches 1/2 of its limit in use.
Standards | Series Type | SizeRange |
ANSI | EL | EL35-EL315 |
ELS | ELS44-ELS250 | |
DIN | EL | EL90-EL800 |
ELS | ELS112-ELS630 |

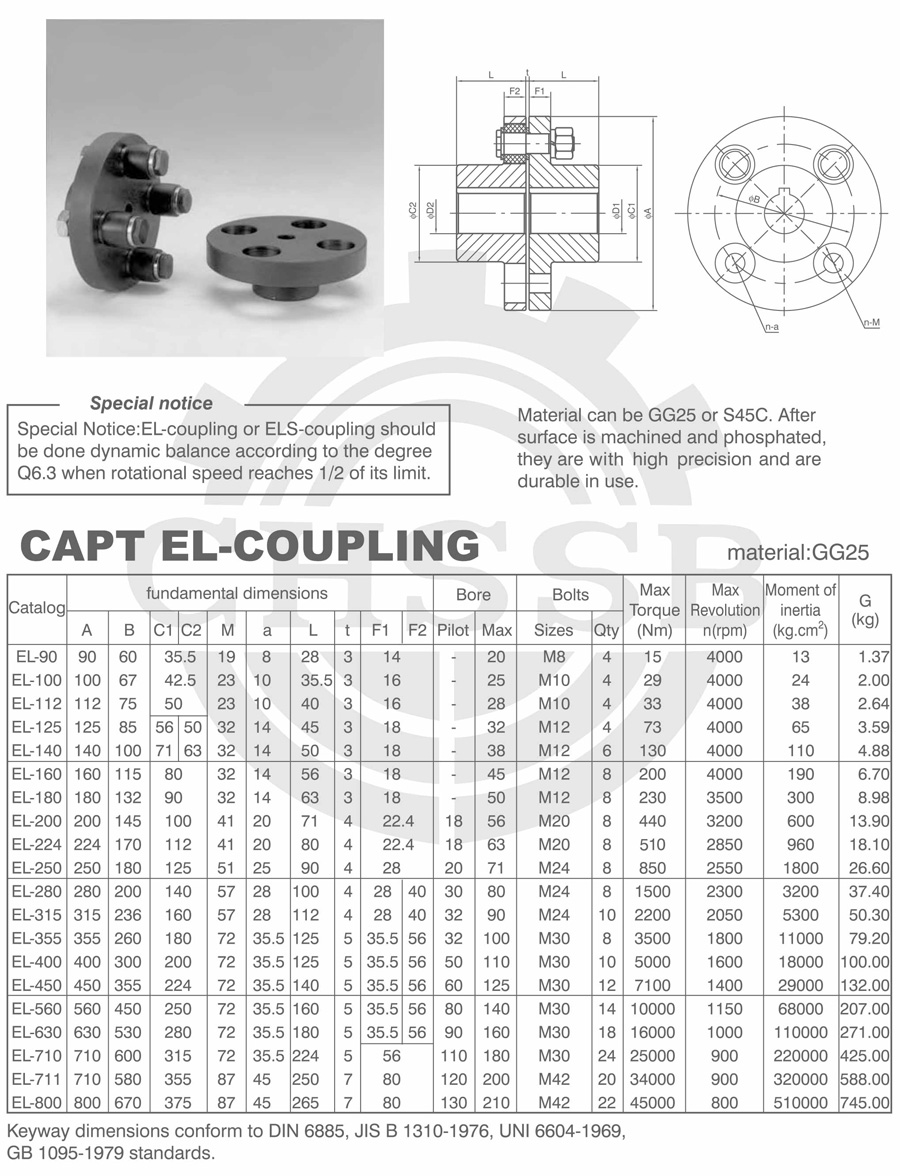

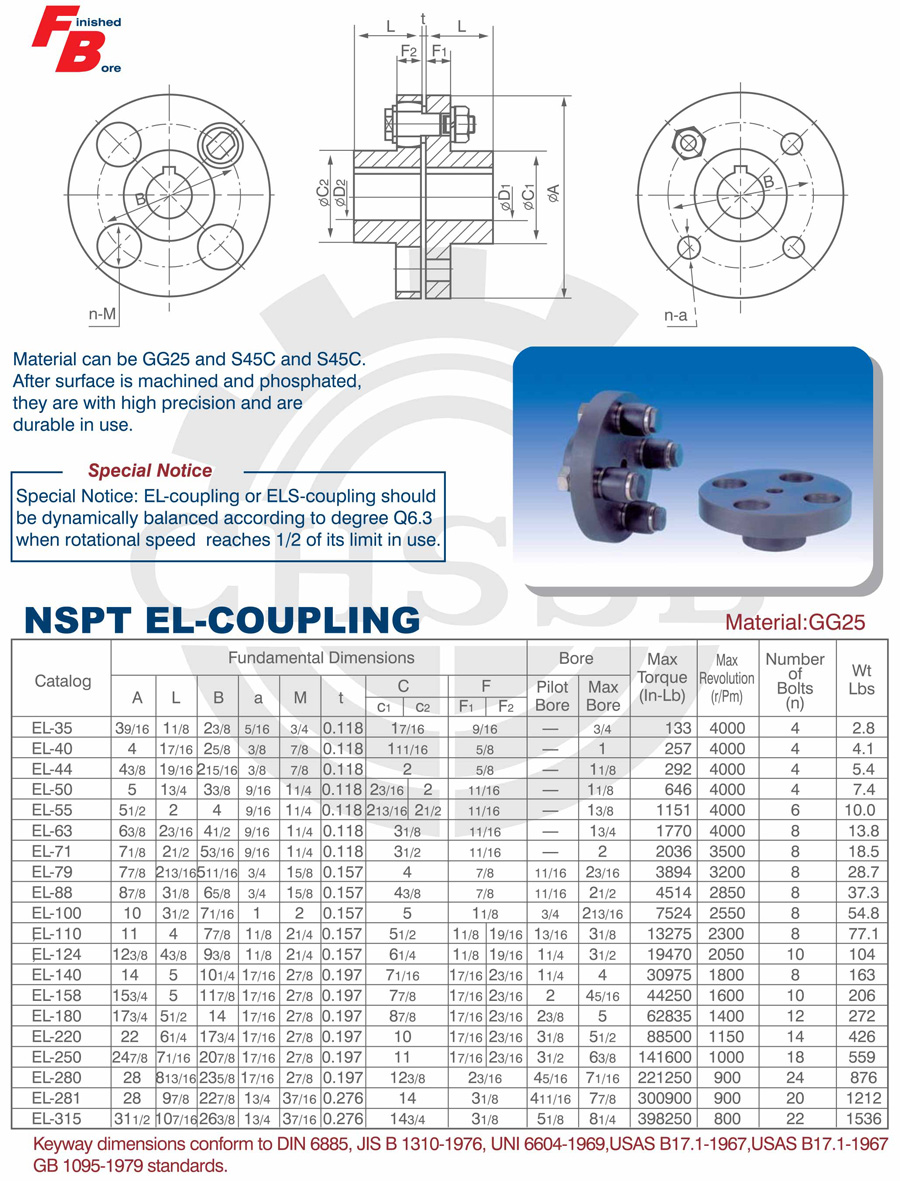

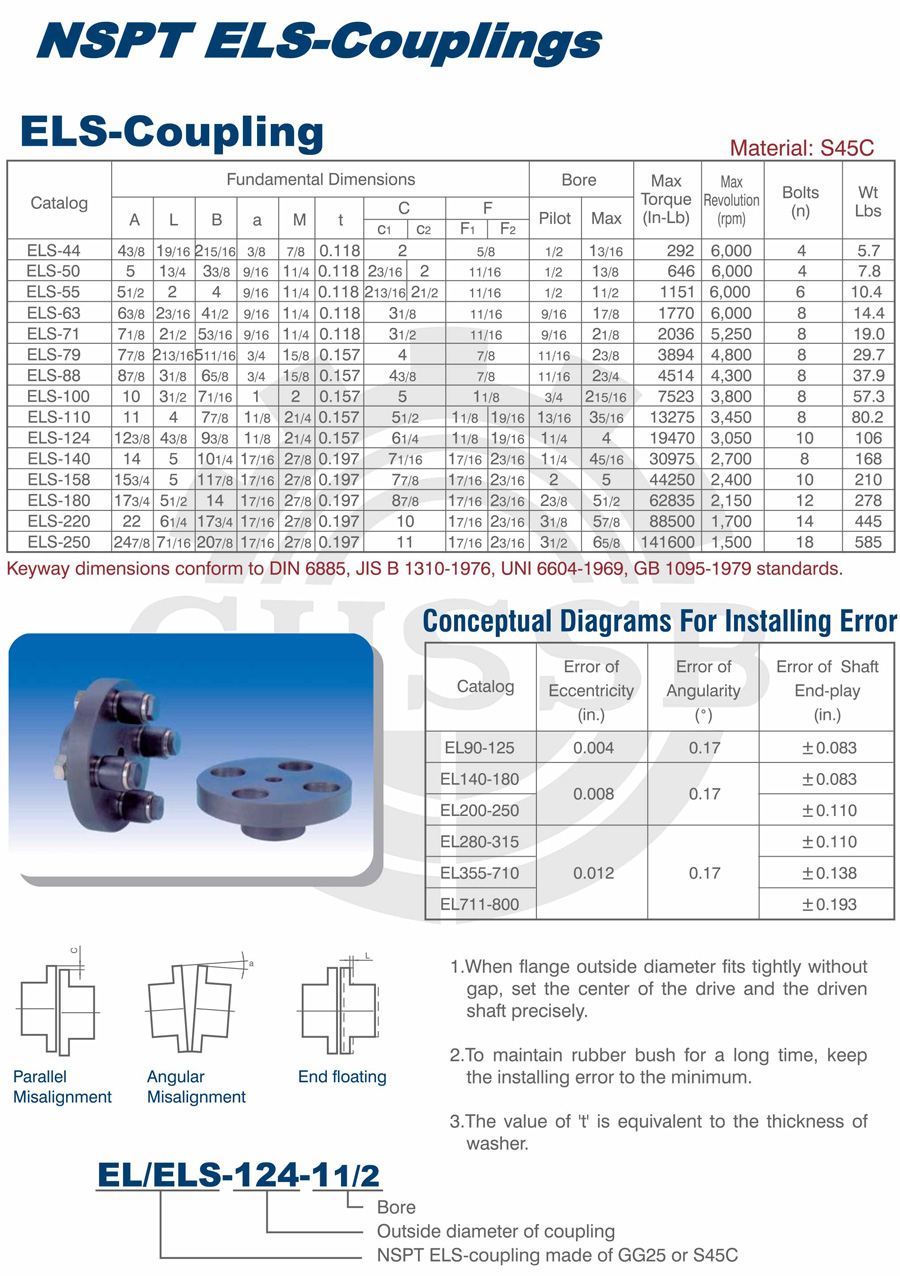

ANSI Standard:

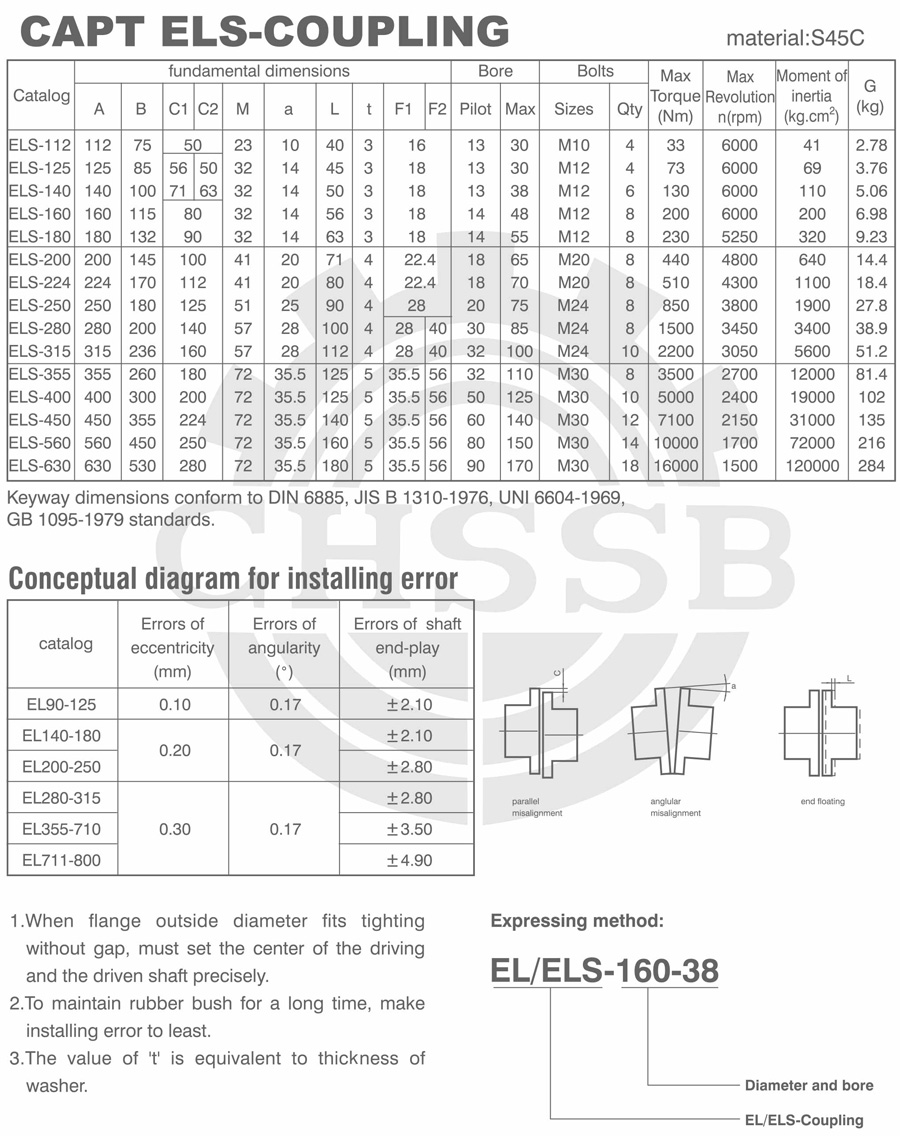

DIN Standard:
