CB Series of Bevel Gear Operators
CB Series of Bevel Gear Operators
Range of product:
ANSI:(CBA107-CBA307)
DIN:(CB107-CB307)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
Product Details
●Multi-turning type drive device suitable for gate valve, stop valve， and other types of valves.
●Allowable output torque range:996~4000LBF.FT
●Using tooth scarf joining type connection valve; flange connection should be
designed and produced according to ISO52100/MSS SP-101 standatd.
●Material used for gear body and cover is cast iron.
Standards | Series Type | SizeRange |
ANSI | CBA | CBA107-CBA307 |
DIN | CB | CB107-CB307 |

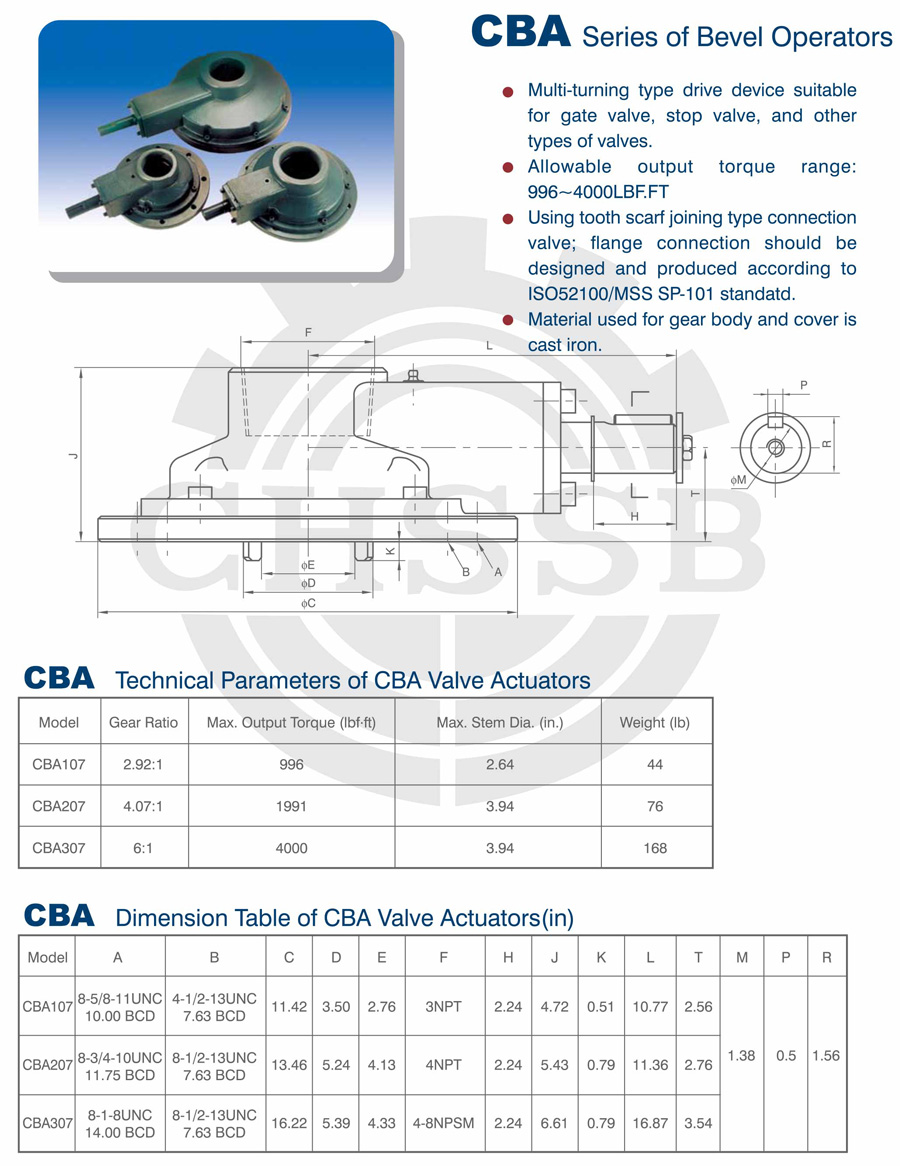

ANSI Standard:

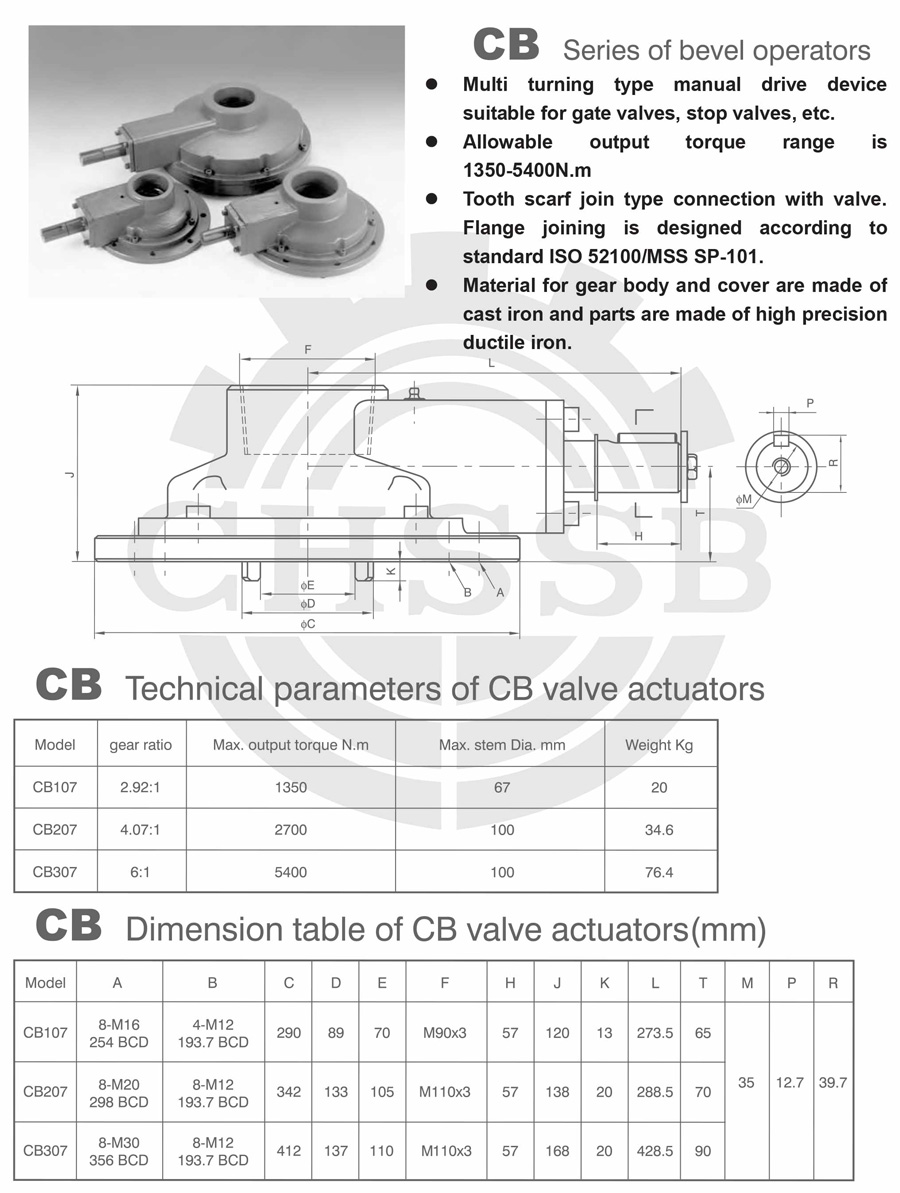

DIN Standard:
