CLG Series of Bevel Gear Operators

CLG Series of Bevel Gear Operators

Range of product:

ANSI:(CLGA1-CLGA140)

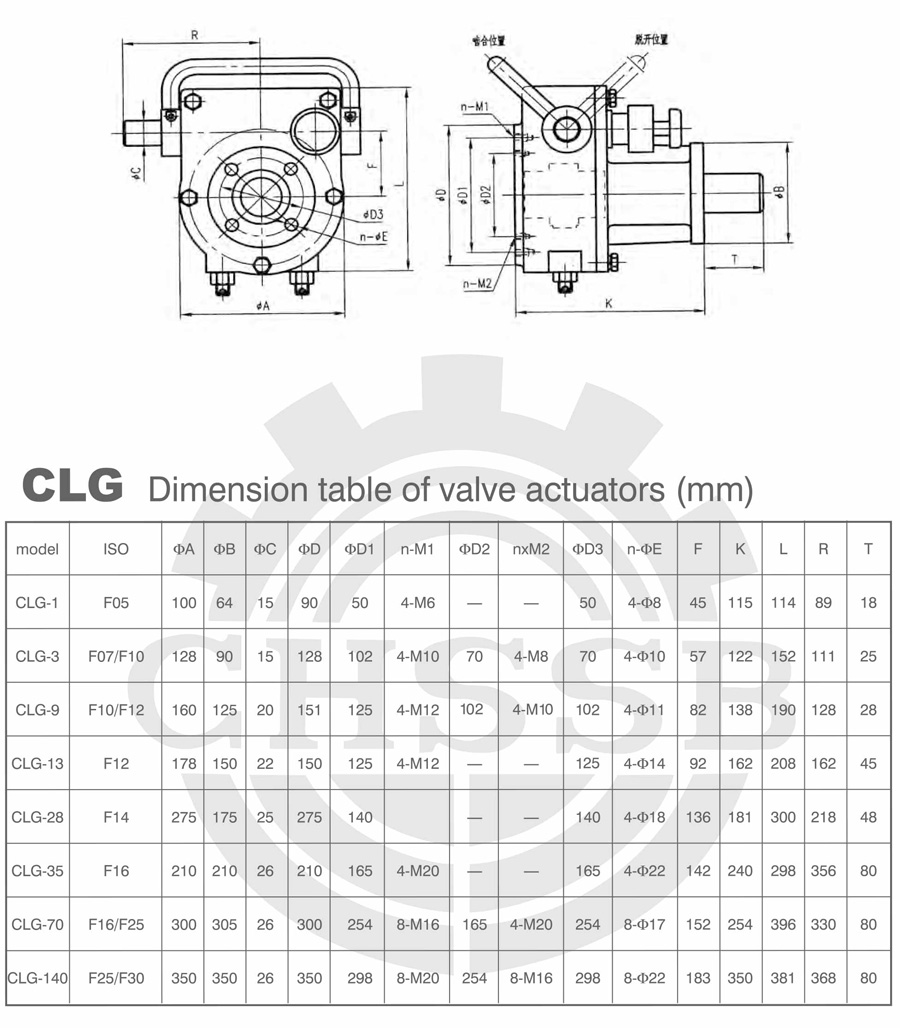

DIN:(CLG1-CLG140)

Inch size product (Apply to ANSI market)

Metric size product (Apply to DIN market)

Product Details

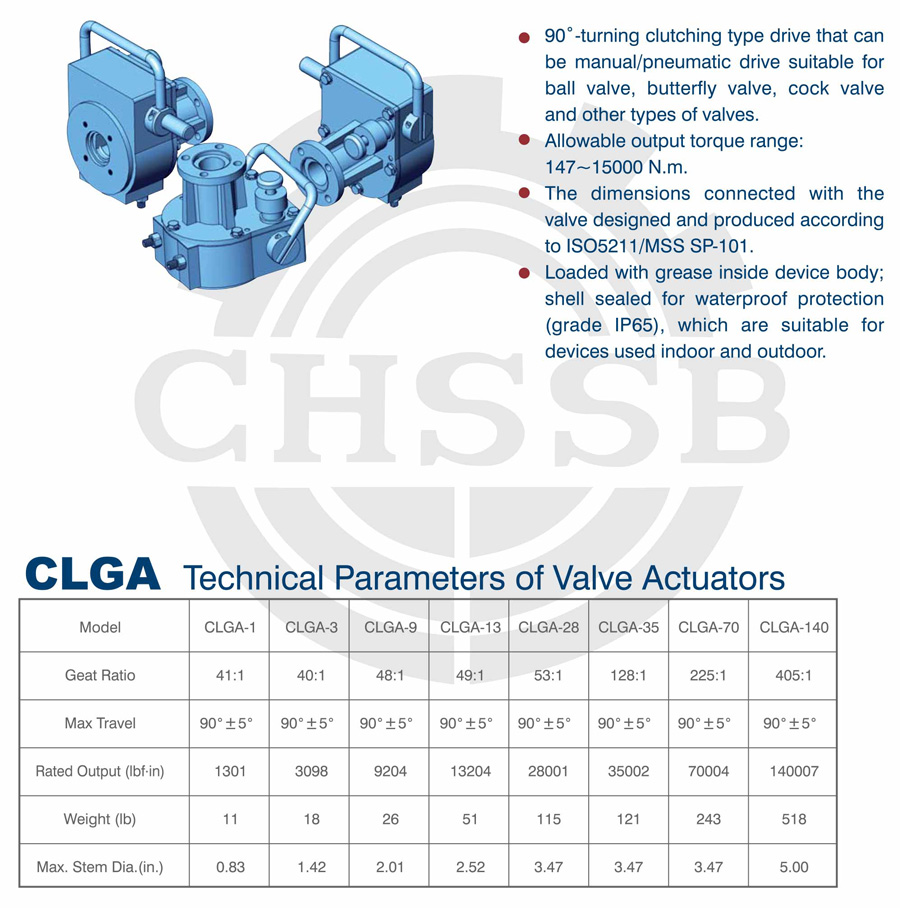

●90 degree turning clutching drive device which can perform manual or pneumatic drives suitable for ball valve, butterfly valve, cock valve, etc.

●Allowable output torque range is 147-15000N.m

●The dimensions connected with the valve are designed according to IS05211/MSS SP-101.

●Loaded with grease inside the gear body,shell sealed for waterproof protection with a grade of IP65 which can be used either inside or out in open air.


Standards

Series Type

SizeRange

ANSI

CLGA

CLGA1-CLGA140

DIN

CLG

CLG1-CLG140

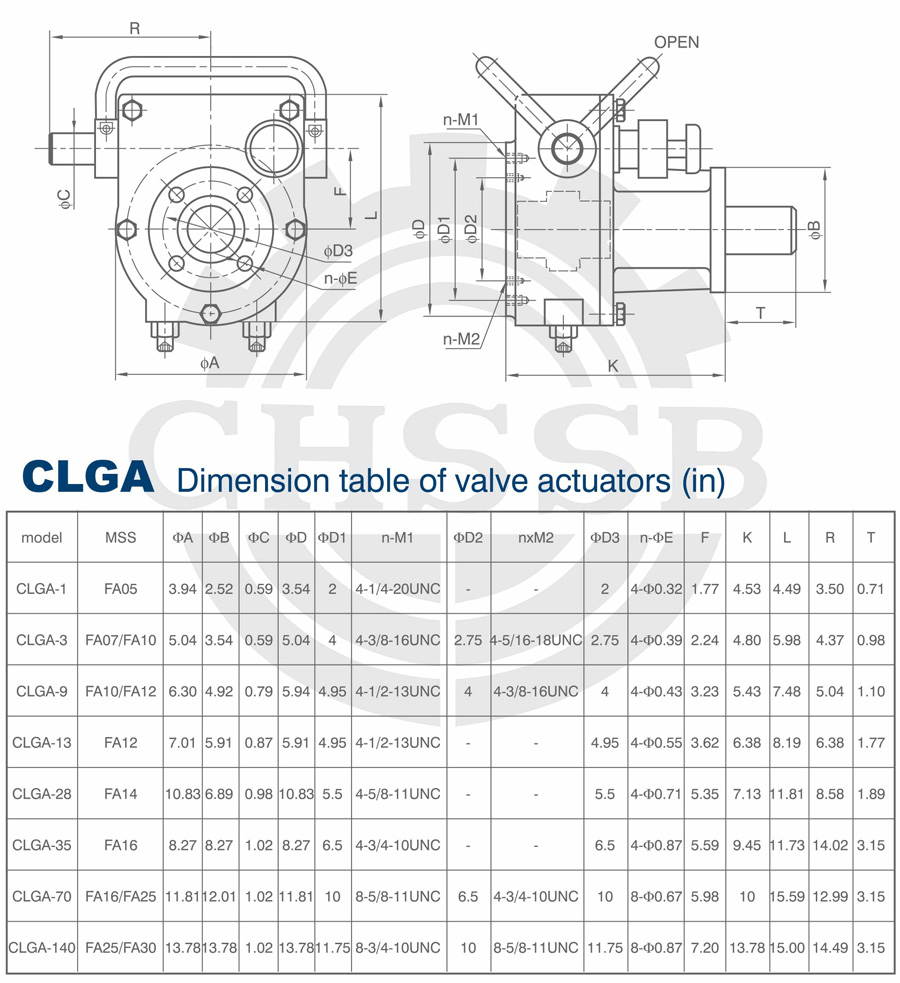

ANSI Standard:
