Machined Gear Racks
Machined Gear Racks Type Pulleys
Range of product:
ANSI:(14 1/2°,3-24DP/20°,3-20DP/20°,4-20DP)
DIN:(Mod.1-6)
Inch size product (Apply to ANSI market)
Inch size product (Apply to DIN market)
Product Details

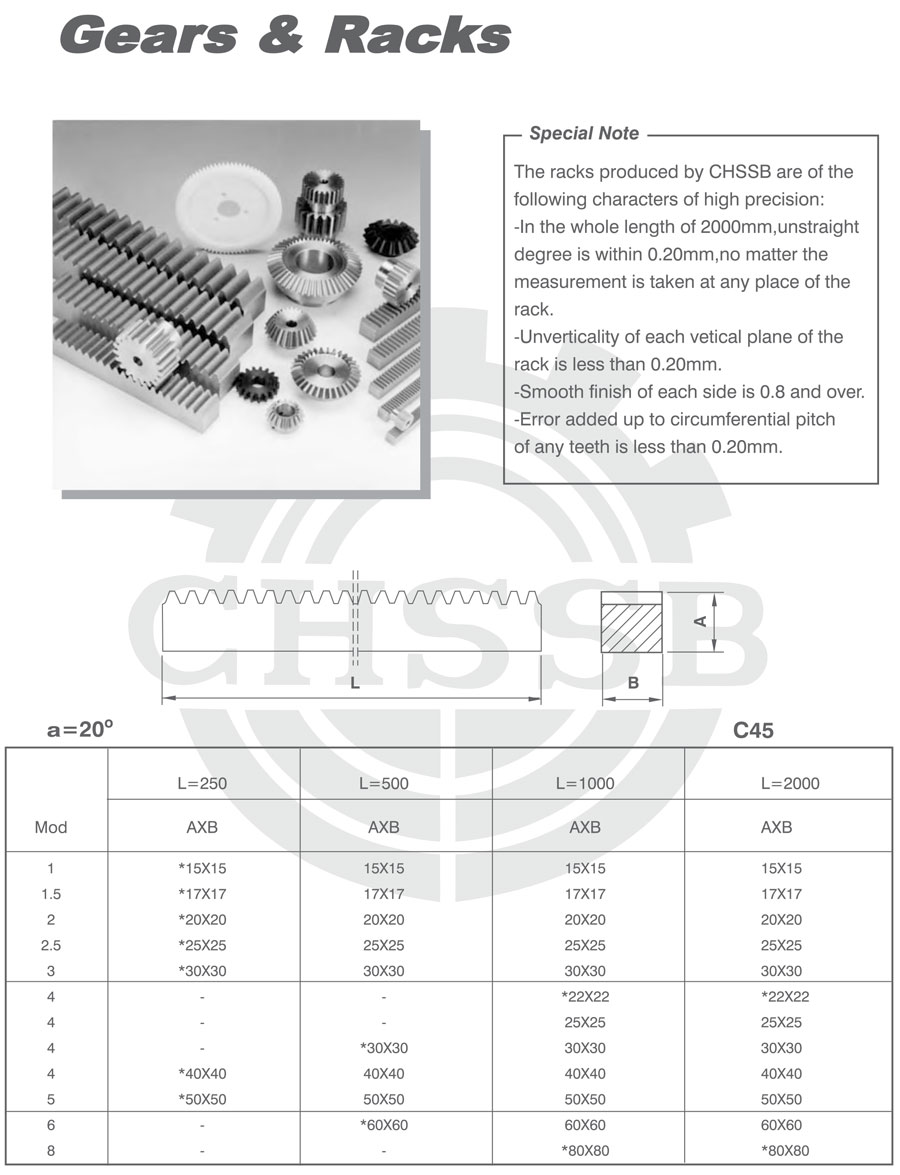

The racks produced by CHSSB are of the following characteristics of high precision:-In the whole length of 6ft, unstraight degree is within 0.01", no matter where the measurement is taken at any place of the rack.-Unverticality of each vetical plane of the rack is less than 0.01".-Error added up to circumferential pitch of any teeth is less than 0.01".
Series Type | SizeRange | |

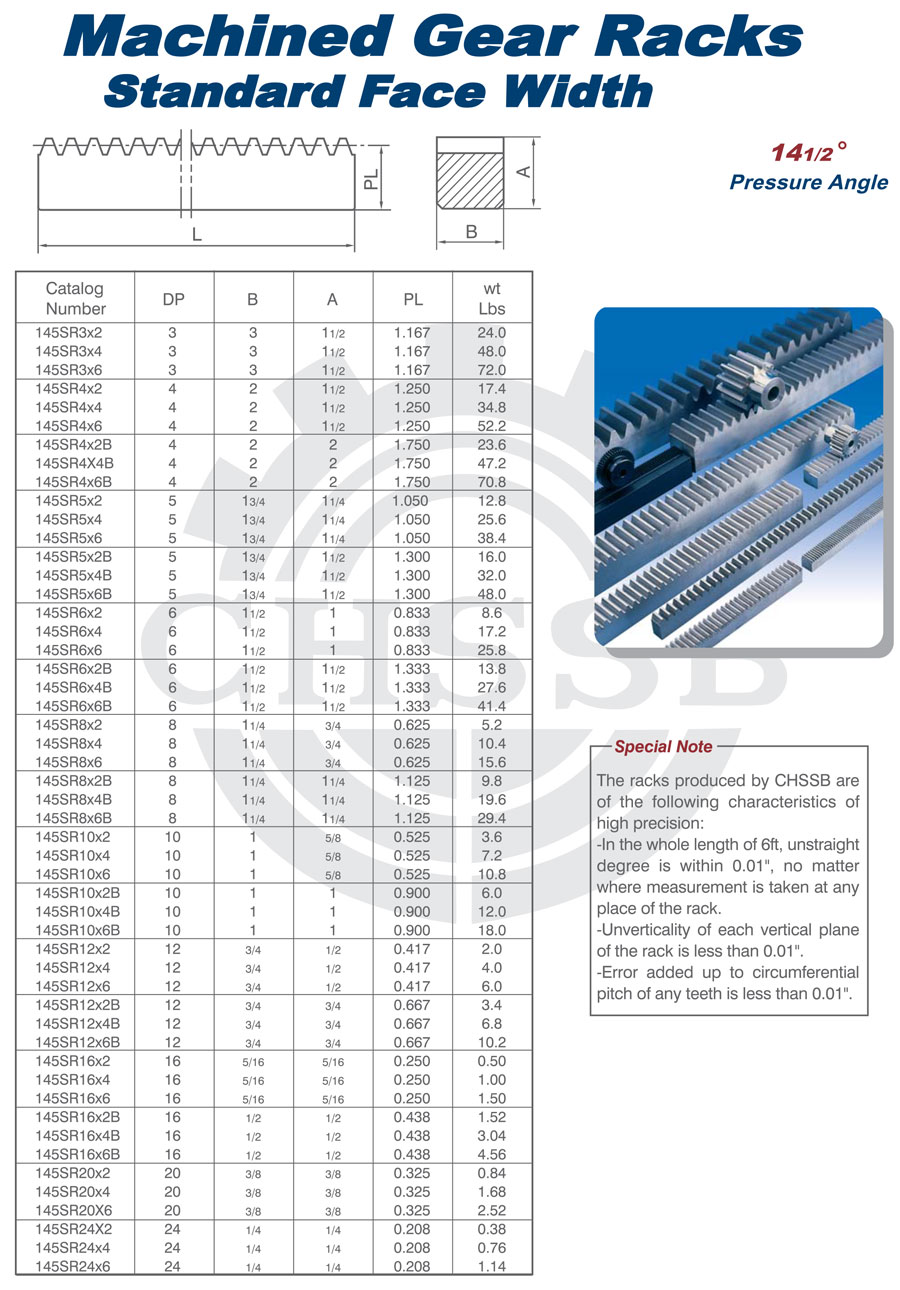

ANSI | 14 1/2°,3-24DP | 145SR3x2 - 145SR24x6 |

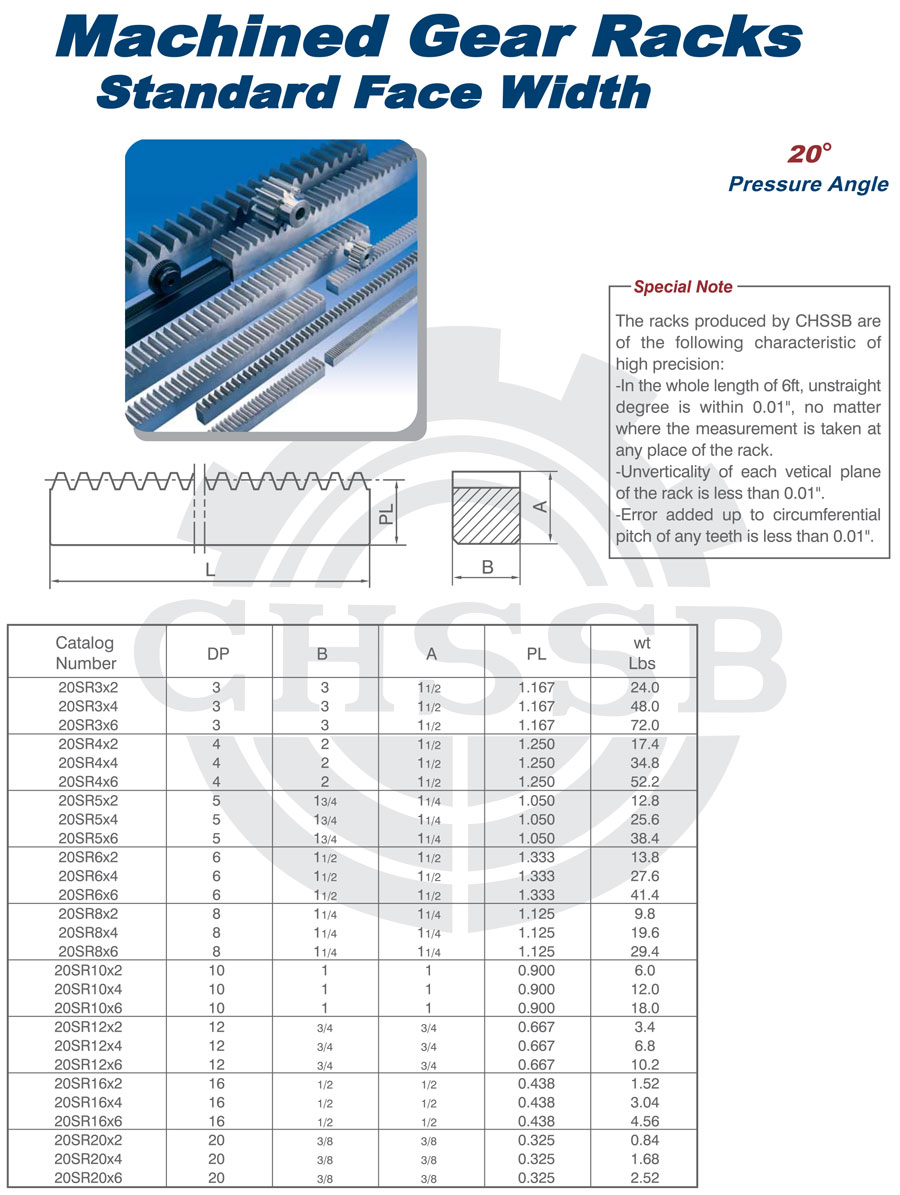

20°,3-20DP | 20SR3x2 - 20SR20x6 | |

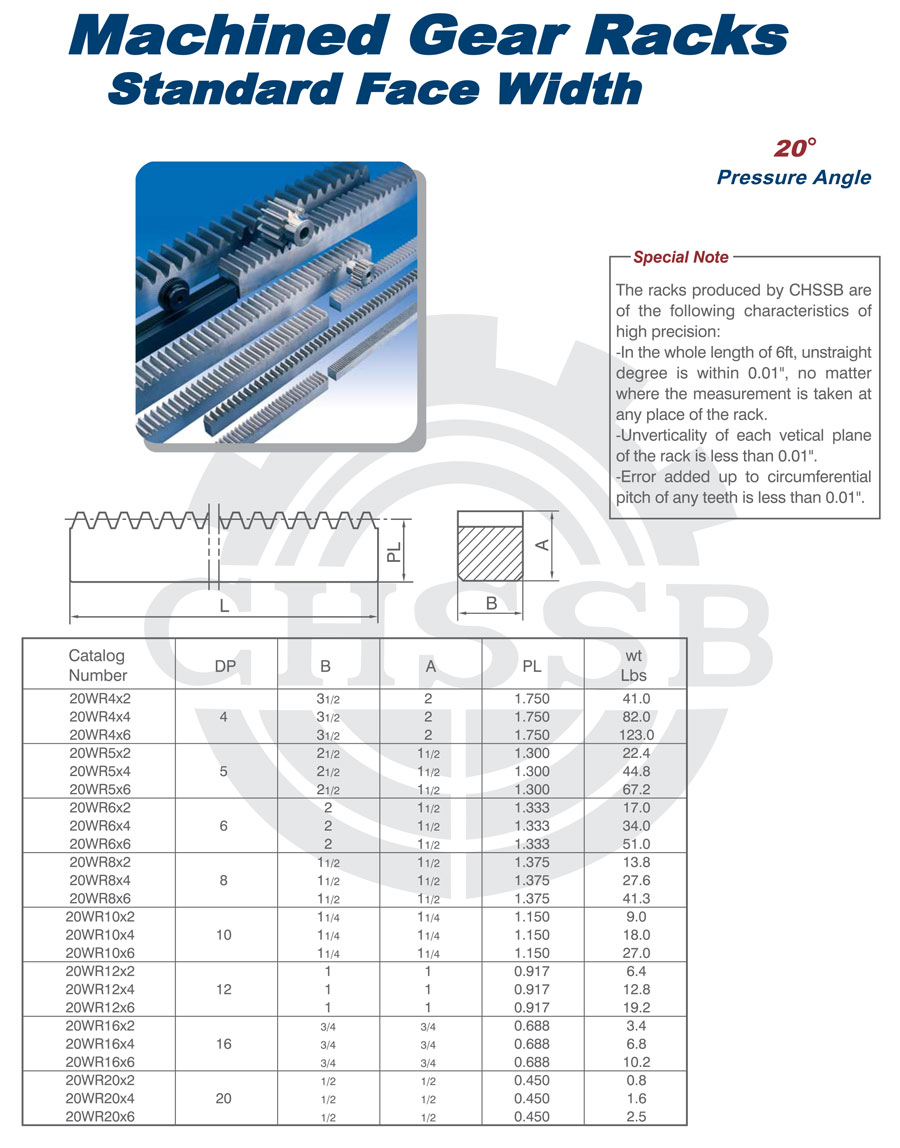

20°,4-20DP | 20WR4x2 - 20WR20x6 | |
DIN | 20°,250-2000 |
Catalog explanation：
ANSI Catalog:
DIN Catalog:
